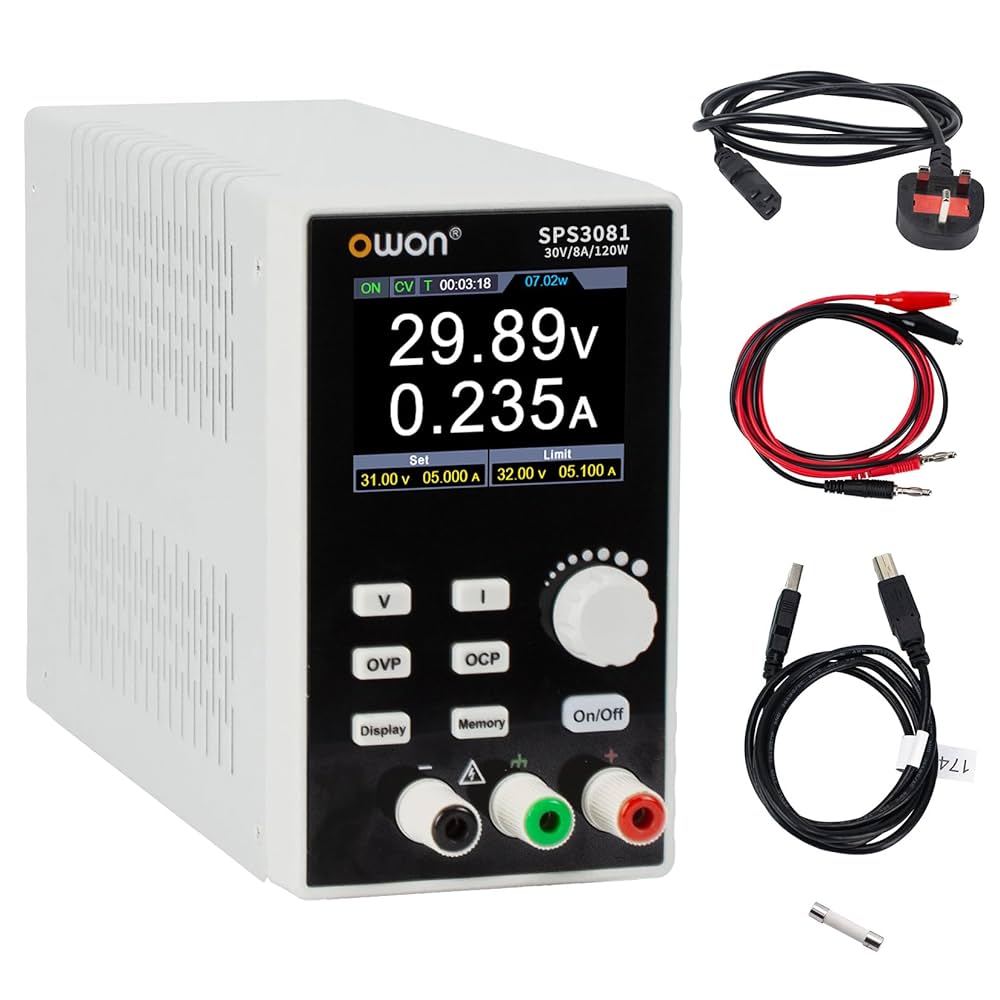

SPS3081 120W Fansız Tek Kanal Programlanabilir DC Güç Kaynağı
KARGO BEDAVA
7.705,36 TL (KDV Dahil)
18.492,88 TL
OWON SPS Fansız Tek Kanallı Programlanabilir DC Güç Kaynağı Genel Özellikleri:
|
Model |
SPS6051 |
SPS3081 |
|
|
Rated Output (0℃-40℃) |
Voltage |
0 -61V |
0 -31V |
|
Current |
0 - 5.1A |
0 - 8.1A |
|
|
Power |
150W |
120W |
|
|
Load Regulation |
Voltage |
≤30mV |
|
|
Current |
≤20mA |
||
|
Power Regulation |
Voltage |
≤30mV |
|
|
Current |
≤20mA |
||
|
Setting Resolution |
Voltage |
10mV |
|
|
Current |
1mA |
||
|
Readback Resolution |
Voltage |
10mV |
|
|
Current |
1mA |
||
|
Seting Accuracy (25℃±5℃) |
Voltage |
≤0.05% ± 20mV |
≤0.1% ± 20mV |
|
Current |
≤0.05% ± 20mA |
≤0.2% ± 20mA |
|
|
Readback Accuracy (25℃±5℃) |
Current |
≤0.05% ±20mV |
≤0.1% ±20mV |
|
Voltage |
≤0.05% ±20mV |
≤0.2% ± 20mA |
|
|
Ripple/Noise(*) |
Voltage |
≤30mVp-p |
≤30mVp-p |
|
Voltage |
≤4mVrms |
≤5mVrms |
|
|
Current |
≤10mAp-p |
≤30mAp-p |
|
|
Output temperature coefficient (0℃-40℃) |
Voltage |
100ppm/℃ |
|
|
Current |
200ppm/℃ |
||
|
Readback temperature coefficient |
Voltage |
100ppm/℃ |
|
|
Current |
200ppm/℃ |
||
|
Response Time(50%-100% rated load) |
≤1.0ms |
||
|
Storage |
4 groups of data |
||
|
Working Temperature |
0-40℃ |
||
|
Display |
2.8 inch color LCD display |
||
|
Interface |
USB Device |
||
|
Dimension |
82mm（W）× 142mm（H）×226mm（D） |
||
|
Weight |
Approx. 1.8 kg |
||
