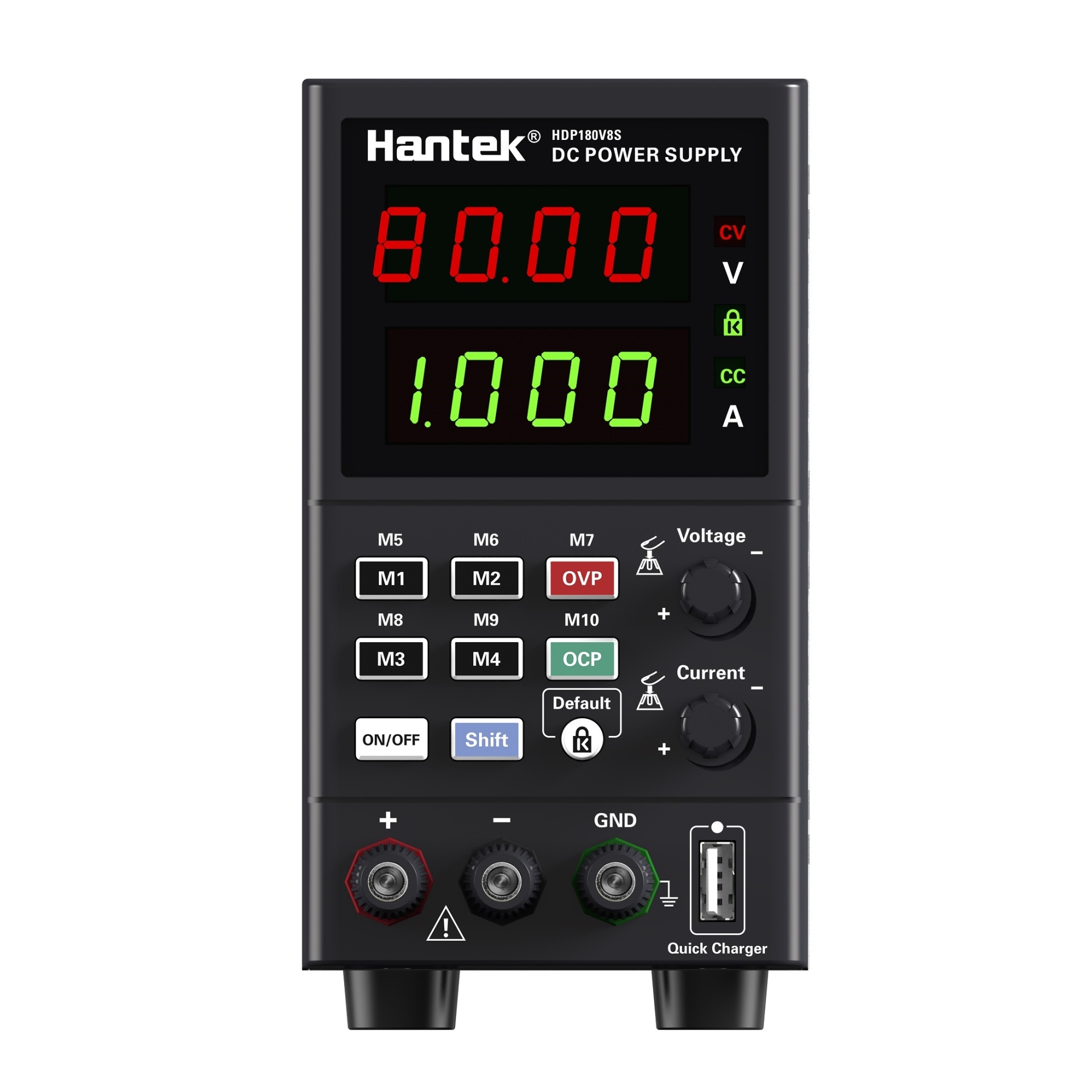

HDP180V8S 10mV DC Güç Kaynağı
0,00 TL (KDV Dahil)
HDP10000 Genel Özellikler:
HDP180V8S Genel Özellikler:
| Voltage | |||
| Load regulation | ≤0.1% + 5mV | ||
| Linear regulation | ≤0.01% + 5mV | ||
| Setting resolution | HDP135V6 | 10mV | |
| HDP135V6A | 10mV | ||
| HDP135V6B | 10mV | ||
| HDP135V6S | 10mV | ||
| HDP180V8S | 10mV | ||
| HDP1160V4S | 0~100V | 10mV | |
| 100~160V | 100mV | ||
| Setting precision | ≤0.1% + 1 digits | ||
| Read back resolution | HDP135V6 | 10mV | |
| HDP135V6A | 10mV | ||
| HDP135V6B | 10mV | ||
| HDP135V6S | 10mV | ||
| HDP180V8S | 10mV | ||
| HDP1160V4S | 0~100V | 10mV | |
| 100~160V | 100mV | ||
| Read back accuracy | ≤0.1% + 1 digits | ||
| Ripple | HDP135V6 | 10mVrms | |
| HDP135V6A | 10mVrms | ||
| HDP135V6B | 10mVrms | ||
| HDP135V6S | 10mVrms | ||
| HDP180V8S | 10mVrms | ||
| HDP1160V4S | 15mVrms | ||
| Overvoltage protection(OVP) | HDP135V6 | 0 ~ 37V ± 0.2%FS | |
| HDP135V6A | 0 ~ 37V ± 0.2%FS | ||
| HDP135V6B | 0 ~ 37V ± 0.2%FS | ||
| HDP135V6S | 0 ~ 37V ± 0.2%FS | ||
| HDP180V8S | 0 ~ 88V ± 0.2%FS | ||
| HDP1160V4S | 0 ~ 176V ± 0.2%FS | ||
| Maximum voltage | HDP135V6 | 35.2V ± 0.2% | |
| HDP135V6A | 35.2V ± 0.2% | ||
| HDP135V6B | 35.2V ± 0.2% | ||
| HDP135V6S | 35.2V ± 0.2% | ||
| HDP180V8S | 81V± 0.2% | ||
| HDP1160V4S | 162V± 0.2% | ||
| Current | |||
| Load regulation | ≤0.2% + 3mA | ||
| Linear regulation | ≤0.2% + 3mA | ||
| Setting resolution | 1mA | ||
| Setting precision | ≤0.2% + 3mA | ||
| Read back resolution | 1mA | ||
| Read back accuracy | ≤0.2% + 3 digits | ||
| Ripple | HDP135V6 | 5mArms | |
| HDP135V6A | 5mArms | ||
| HDP135V6B | 5mArms | ||
| HDP135V6S | 5mArms | ||
| HDP180V8S | 8mArms | ||
| HDP1160V4S | 10mArms | ||
| Overcurrent protection (OCP) | HDP135V6 | 0 ~ 7A ± 0.2%FS | |
| HDP135V6A | 0 ~ 7A ± 0.2%FS | ||
| HDP135V6B | 0 ~ 7A ± 0.2%FS | ||
| HDP135V6S | 0 ~ 7A ± 0.2%FS | ||
| HDP180V8S | 0 ~ 8.8A ± 0.2%FS | ||
| HDP1160V4S | 0 ~ 4.4A ± 0.2%FS | ||
| Maximum current | HDP135V6S | 6.2A ± 0.2% | |
| HDP180V8S | 8.2A ± 0.2% | ||
| HDP1160V4S | 4.1A ± 0.2% | ||
| Quick charge | |||
| Output voltage range | 5V ~ 12V | ||
| Output power | Maximum 18 W | ||
| Supported quick charging protocol | DCP (Apple, Samsung and BC1.2), Qualcomm QC2.0/QC3.0, Huawei Quick Charge Protocol FCP, Samsung Quick Charge Protocol AFC | ||
| General features | |||
| Remote interface | RS232 (Female connector) | ||
| Baud rate: 2400 | |||
| Data bit: 8 | |||
| Stop bit: 1 | |||
| None Parity check | |||
| Only the S series has an RS232 interface | |||
| AC input | HDP135V6 | 115 Vac ± 10%，230 Vac ± 10%，50/60Hz | |
| HDP135V6A | 230 Vac ± 10%，50/60Hz | ||
| HDP135V6B | 115 Vac ± 10%，50/60Hz | ||
| HDP135V6S | 115 Vac ± 10%，230 Vac ± 10%，50/60Hz | ||
| HDP180V8S | 115 Vac ± 10%，230 Vac ± 10%，50/60Hz | ||
| HDP1160V4S | 115 Vac ± 10%，230 Vac ± 10%，50/60Hz | ||
| Rated output power | HDP135V6 | 210W | |
| HDP135V6A | 210W | ||
| HDP135V6B | 210W | ||
| HDP135V6S | 210W | ||
| HDP180V8S | 180W | ||
| HDP1160V4S | 180W | ||
| Working conditions | Temperature -10 ° C to 40 ° C, relative humidity ≤80% | ||
| Storage conditions | Temperature -20 ° C to 60 ° C, relative humidity ≤80% | ||
| Cooling | Air cooling | ||
| Weight | HDP135V6 | 1.30Kg | |
| HDP135V6A | 1.30Kg | ||
| HDP135V6B | 1.30Kg | ||
| HDP135V6S | 1.30Kg | ||
| HDP180V8S | 1.50Kg | ||
| HDP1160V4S | 1.50Kg | ||
| Dimensions | 85×160×260(mm) | ||
