Hantek1832C/Hantek1833C taşınabilir LCR Ölçer, endüktans, kapasitans, direnç vb. gibi bileşenin parametrelerini ölçmek için taşınabilir bir taşınabilir ölçüm cihazıdır. Küçük hacimli, 5V lityum pil ile çalışır, masaüstü LCR uygulamasının gereksinimlerini karşılayabilir ve ayrıca akış ölçümü ve taşınabilir ölçüm için de kullanılabilir.

Serinin Genel Özellikleri:

  • 100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz, 50kHz, 75kHz, 100kHz 10 tipik test frekansı (Hantek1832C) 7 tipik test frekansı

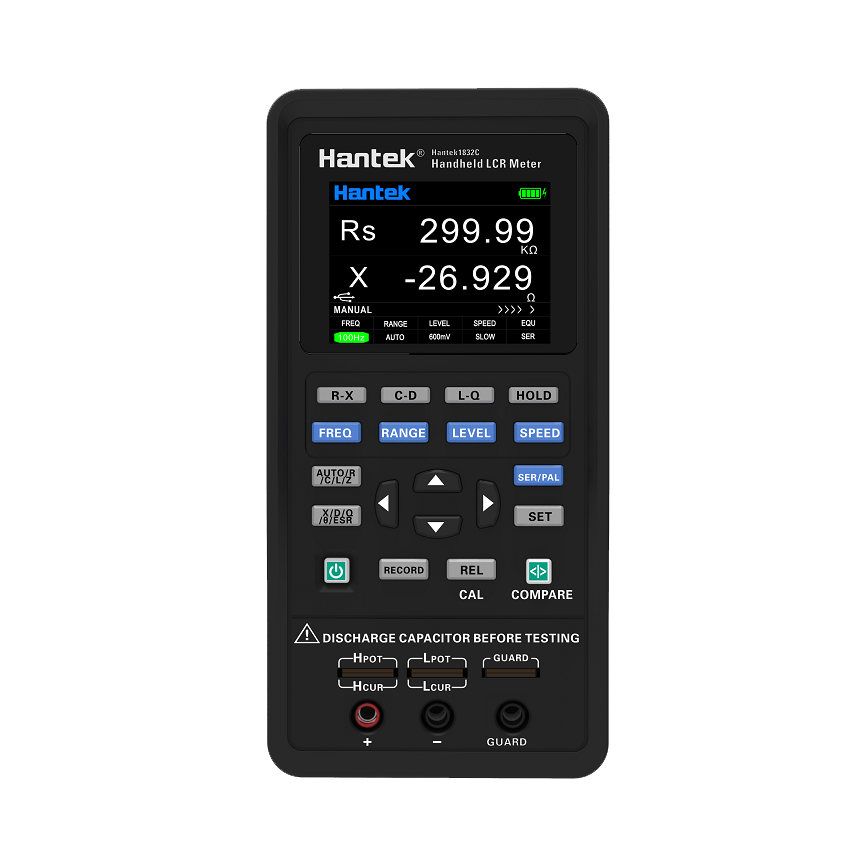

  • 2,8 inç TFT LCD, Çince ve İngilizce arasında geçiş yapın HD ekran, ölçüm verilerinin çift gösterimi, sonuç nettir
  • Veri kayıt analizini destekler PC üst bilgisayarı destekler, uzaktan kontrol etmek ve ölçmek kolaydır
  • Test kablosu: 3 terminal/5 terminal anahtarı
  • Ölçüm hızı: yüksek hız/orta hız/düşük hız anahtarı
  • Aralık: manuel/otomatik anahtarı destekler, hızlı ölçüm yapmak kolaydır
  • LCR benimsenmiş şarj edilebilir tasarım

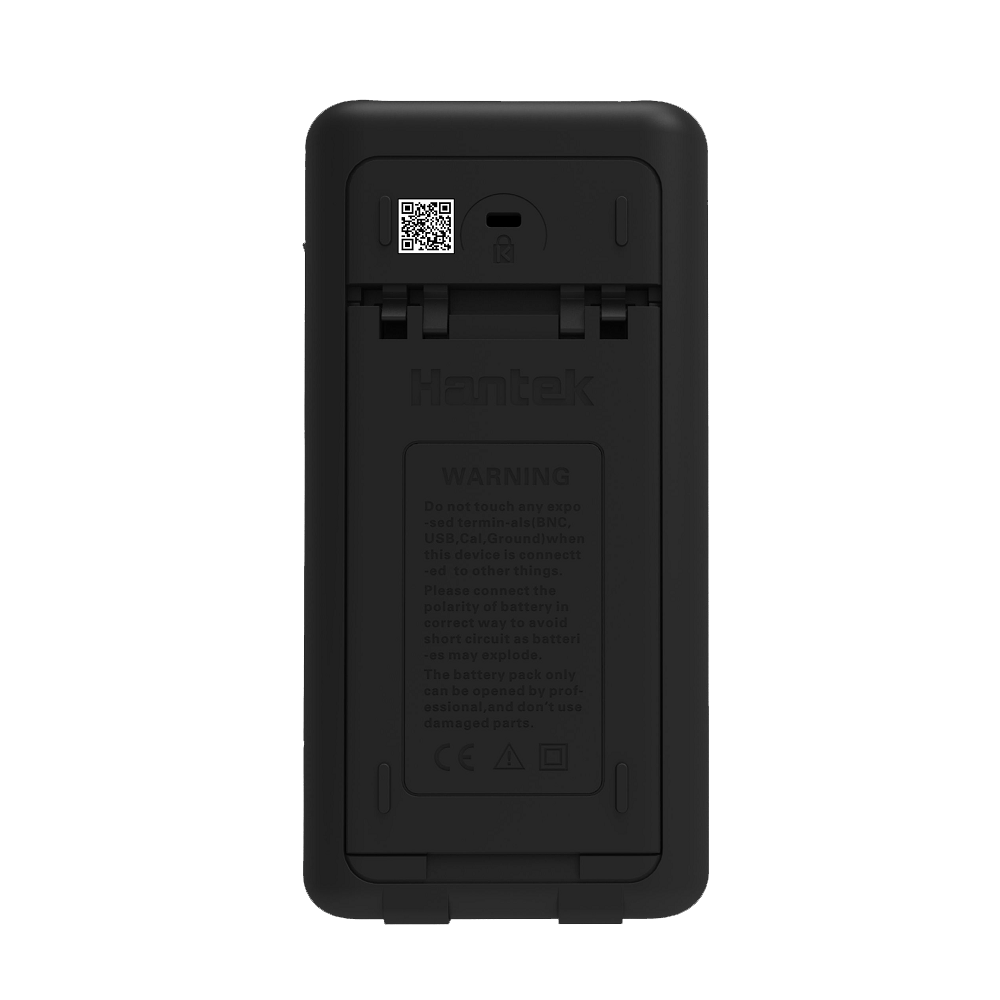

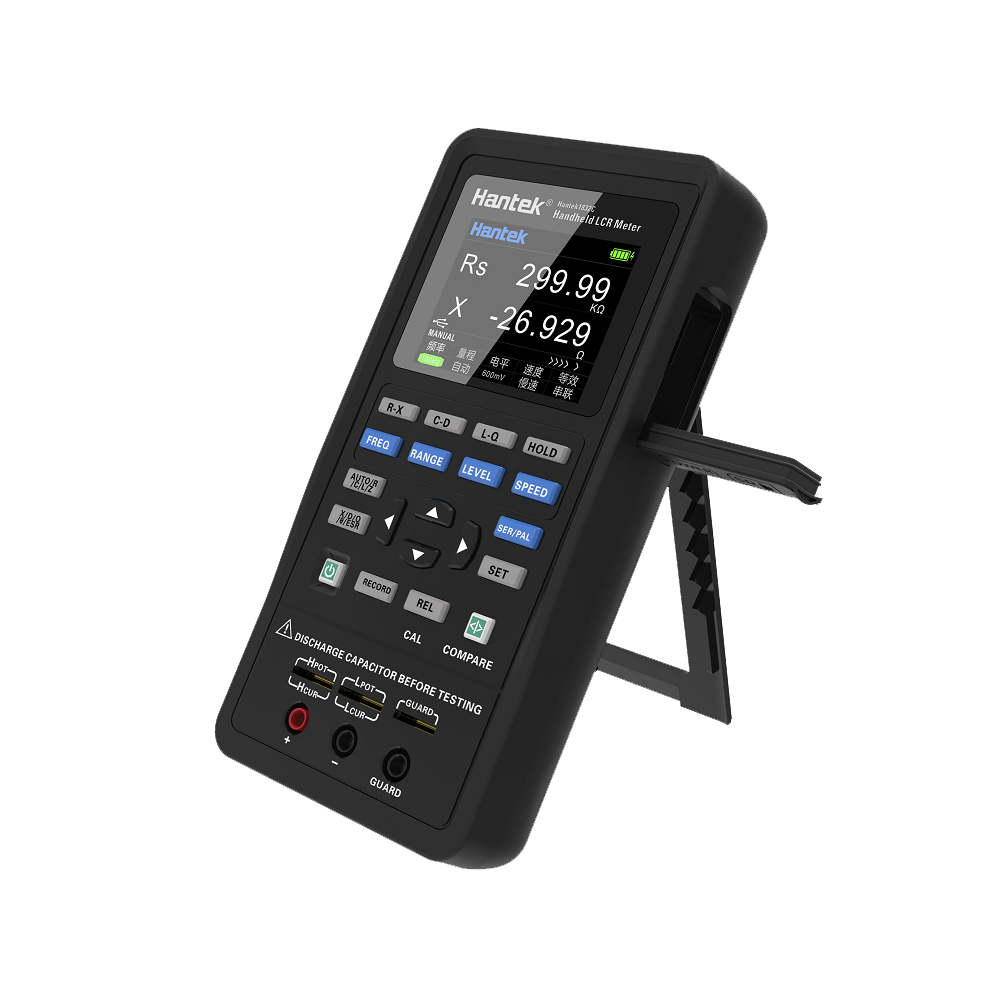

  • Büyük kapasiteli lityum pil, süper bekleme. Çift şok koruma kılıfı, çok yönlü koruma, sarsıntıya dayanıklı, düşme durdurma, makineyi hasardan korur, daha uzun kullanım süresi, daha rahat ölçüm Braket tasarımı, takılması ve ölçülmesi kolay

Specification：



Model Hantek1832C Hantek1833C
Test frequency 100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz,  100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz,
40kHz 40kHz, 50kHz, 75kHz, 100kHz
Accuracy 0.30%
Equivalent Circuit series, parallel
Test level 0.6Vrms 0.6Vrms, 0.3Vrms
Measurement way manual, auto
Display screen 2.8 inch TFT LCD
Measurement parameters principle parameter: L/C/R/Z   deputy parameter: X/D/Q/θ/ESR
Principle parameter L/C/R/Z
Deputy parameter X/D/Q/θ/ESR
Inductance Measurement range (L) 0-2000H
Capacitance Measurement range (C) 0-20mF
Resistance  Measurement range (R) 0-20MΩ
Measurement speed high speed(4 times/s), intermediate speed(twice/s), low speed(once/s)
Reset function open circuit calibration, short-circuit calibration
Test terminal configuration 3 terminal, 5 terminal

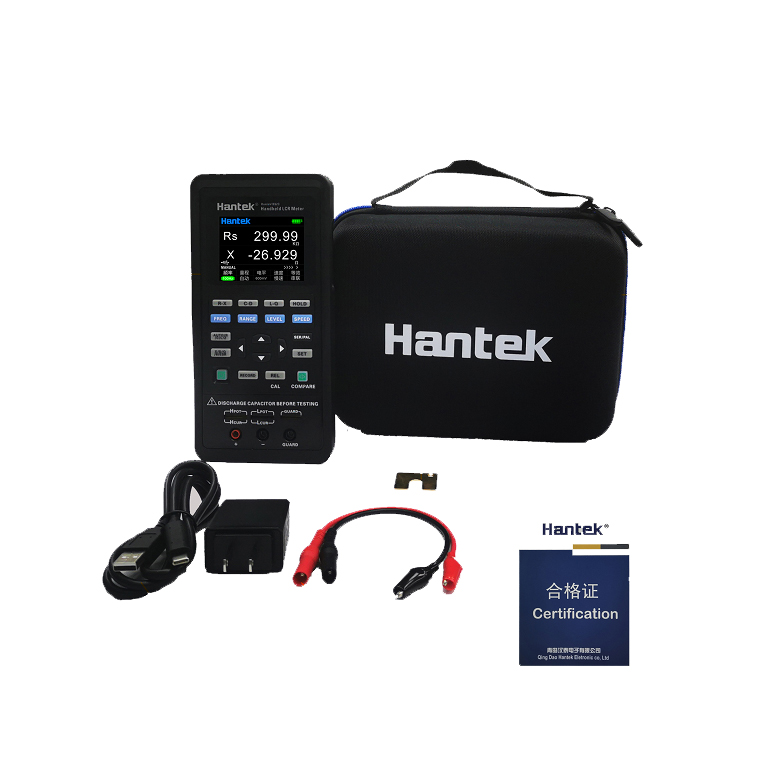

General feature standard with 1.Type-C data cable; 2.power adapte; 3.short circuit card; 4.red and black rubber plug; 5.large capacity lithium battery
Capacitance C and dissipationD
100Hz/120Hz
Range Display range Accuracy Ce  Accuracy De  Recommended equivalent mode
20mF  4.000mF~20.000mF  8.00%+5 digits 0.08 series
4mF  400.0μF~3.9999mF  2.00%+3 digits 0.02 series
400μF  40.00μF~399.99μF  0.60%+2 digits  0.006 series
40μF  4.000μF~39.999μF  0.40%+2 digits 0.004 series
4μF  400.0nF~3.9999μF  0.40%+2 digits 0.004 ----
400nF  40.00nF~399.99nF  0.4%+2 digits 0.004 parallel
40nF  4.000nF~39.999nF  0.5%+3 digits 0.005 parallel
4nF  0pF~3.999nF  1.5%+5 digits  ------  parallel
1KHz
Range Display range Accuracy Ce  Accuracy De  Recommended equivalent mode
1000uF  400.0uF~999.9uF  3.00%+5 digits 0.03 series
400μF  40.00μF~399.99μF  1.50%+3 digits 0.015 series
40μF  4.000μF~39.999μF  0.60%+2 digits  0.006 series
4μF  400.0nF~3.9999μF  0.40%+2 digits 0.004 ----
400nF  40.00nF~399.99nF  0.4%+2 digits 0.004 parallel
40nF  4.000nF~39.999nF  0.6%+3 digits 0.006 parallel
4nF  400.0pF~3.9999nF  0.6%+3 digits 0.006 parallel
400pF 0.0pF~399.9pF 3%+5 digits ------  parallel
10KHz
Range Display range Accuracy Ce  Accuracy De  Recommended equivalent mode
100μF  40.00μF~100.00μF  4.00%+5 digits  0.04 series
40μF  4.000μF~39.999μF  2.0%+3 digits 0.02 series
4μF  400.0nF~3.9999μF  0.60%+2 digits 0.006 series
400nF  40.00nF~399.99nF  0.4%+2 digits 0.004 series
40nF  4.000nF~39.999nF  0.4%+2 digits 0.004 ------
4nF  400.0pF~3.9999nF  0.4%+2 digits 0.004 parallel
400pF 40.00pF~399.99pF 0.6%+3 digits 0.006 parallel
40pF 0.00pF~39.99pF 2.5%+5 digits ------  parallel
40KHz
Range Display range Accuracy Ce  Accuracy De  Recommended equivalent mode
100μF  40.00μF~100.00μF  6.00%+5 digits 0.06 series
40μF  4.000μF~39.999μF  4.0%+3 digits  0.04 series
4μF  400.0nF~3.9999μF  1.0%+2 digits  0.01 series
400nF  40.00nF~399.99nF  0.6%+2 digits 0.006 series
40nF  4.000nF~39.999nF  0.6%+2 digits  0.006 ------
4nF  400.0pF~3.9999nF  0.6%+2 digits  0.006 parallel
400pF 40.00pF~399.99pF 1%+3 digits 0.01 parallel
40pF 0.000pF~39.999pF 3%+5 digits ------  parallel
100KHz
Range Display range Accuracy Ce  Accuracy De  Recommended equivalent mode
10μF  4.000μF~10.000μF  8.0%+20 digits 0.08 series
4μF  400.0nF~3.9999μF  5.0%+10 digits  0.05 series
400nF  40.00nF~399.99nF  1.5%+5 digits 0.015 series
40nF  4.000nF~39.999nF  1%+2 digits 0.01 series
4nF  400.0pF~3.999nF  1%+2 digits 0.01 ------
400pF 40.00pF~399.99pF 1.5%+2 digits 0.015 parallel
40pF 4.000pF~39.999pF 2%+5 digits 0.02 parallel
4pF 0.000pF~3.999pF 5%+10 digits ------  parallel
Inductance L and quality factor
100Hz/120Hz
Range Display range Accuracy Le  Accuracy De* Recommended equivalent mode
1000H  400.0H~999.9H  2.00%+3 digits 0.02 parallel
400H  40.00H~399.99H  0.60%+2 digits 0.006 parallel
40H  4.000H~39.999H  0.40%+2 digits 0.004 parallel
4H  400.0mH~3.9999H  0.40%+2 digits  0.004 ----
400mH  40.00mH~399.99mH  0.4%+2 digits 0.004 series
40mH  4.000mH~39.999mH  0.6%+3 digits 0.006 series
4mH  0uH~3.999mH  3.0%+5 digits ------  series
 1kHz
Range Display range Accuracy Le  Accuracy De* Recommended equivalent mode
1H  400.0mH~999.9mH  1.50%+3 digits 0.015 parallel
400mH  40.0mH~399.99mH  0.4%+2 digits 0.004 parallel
40mH  4.000mH~39.999mH  0.4%+2 digits 0.004 ------
4mH  400.0uH~3.9999mH  0.4%+2 digits 0.004 series
400uH 40.0uH~399.9uH 0.8%+3 digits 0.008 series
40uH 0.0uH~39.9uH 3.0%+5 digits ------ series
10kHz
Range Display range Accuracy Le  Accuracy De* Recommended equivalent mode
100H  40.00H~100.00H  2.0%+3 digits  0.02 parallel
40H  4.000H~39.999H  0.60%+2 digits 0.006 parallel
4H  400.0mH~3.9999H  0.40%+2 digits  0.004 parallel
400mH  40.00mH~399.99mH  0.4%+2 digits 0.004 ------
40mH  4.000mH~39.999mH  0.4%+2 digits 0.004 series
4mH  400.0uH~3.9999mH  1%+3 digits 0.01 series
400uH 0.00uH~399.99uH 3.0%+5 digits ------ series
40kHz
Range Display range Accuracy Le  Accuracy De* Recommended equivalent mode
1H  400.0mH~999.9mH  2.0%+4 digits 0.02 parallel
400mH  40.00mH~399.99mH  0.8%+2 digits 0.008 parallel
40mH  4.000mH~39.999mH  0.8%+2 digits 0.008 ------
4mH  400.0uH~3.9999mH  0.8%+2 digits 0.008 series
400uH 40.00uH~399.99uH 1.5%+3 digits 0.015 series
40uH 0.000uH~39.999uH 4.0%+5 digits ------ series
100kHz
Range Display range Accuracy Le  Accuracy De Recommended equivalent mode
100mH  40.00mH~399.99mH  2.5%+2 digits 0.025 parallel
40mH  4.000mH~39.999mH  1.5%+2 digits 0.015 parallel
4mH  400.0uH~3.9999mH  1.0%+2 digits 0.01 ------
400uH 40.00uH~399.99uH 1.0%+2 digits 0.01 series
40uH 4.000uH~39.999uH 1.5%+5 digits 0.015 series
4uH 0.000uH~3.999uH 4%+10 digits ------ series
 Impedance Z and phase angle
100Hz, 120Hz, 1kHz, 10kHz
Range Display range Accuracy Ze Accuracy Recommended equivalent mode
20MΩ 4.000MΩ~20.000MΩ 3.0%+10 digits 3.4° parallel
4MΩ 400.0kΩ~3.9999MΩ 1.2%+3 digits 0.7° parallel
400kΩ 40.00kΩ~399.99kΩ 0.3%+3 digits 0.2° parallel
40kΩ 4.000kΩ~39.999kΩ 0.25%+2 digits 0.1° ------
4kΩ 400.0Ω~3.9999kΩ 0.25%+2 digits 0.1° series
400Ω 40.00Ω~399.99Ω 0.25%+2 digits 0.1° series
40Ω 4.000Ω~39.999Ω 0.5%+3 digits 0.3° series
4Ω 0.4000Ω~3.9999Ω 2.0%+3 digits 1.1° series
0.4Ω 0.0000Ω~0.3999Ω 4.0%+3 digits ------ series
40kHz
Range Display range Accuracy Ze Accuracy Recommended equivalent mode
20MΩ 4.000MΩ~20.000MΩ 7.0%+41 digits 4.0° parallel
4MΩ 400.0kΩ~3.9999MΩ 2.5%+3 digits 1.4° parallel
400kΩ 40.00kΩ~399.99kΩ 1.0%+4 digits 0.6° parallel
40kΩ 4.000kΩ~39.999kΩ 1.0%+4 digits 0.6° ------
4kΩ 400.0Ω~3.9999kΩ 0.5%+3 digits 0.3° series
400Ω 40.00Ω~399.99Ω 0.5%+3 digits 0.3° series
40Ω 4.000Ω~39.999Ω 0.7%+4 digits 0.4° series
4Ω 0.4000Ω~3.9999Ω 2.0%+6 digits 1.1° series
0.4Ω 0.0000Ω~0.3999Ω 5.0%+10 digits ------ series
100kHz
Range Display range Accuracy Ze Accuracy Recommended equivalent mode
20MΩ 4.000MΩ~20.000MΩ 9.0%+20 digits 5.2° parallel
4MΩ 400.0kΩ~3.9999MΩ 4.0%+10 digits 2.3° parallel
400kΩ 40.00kΩ~399.99kΩ 1.5%+4 digits 0.9° parallel
40kΩ 4.000kΩ~39.999kΩ 1.0%+2 digits 0.6° parallel
4kΩ 400.0Ω~3.9999kΩ 0.7%+2 digits 0.4° ------
400Ω 40.00Ω~399.99Ω 0.7%+2 digits 0.4° series
40Ω 4.000Ω~39.999Ω 1.0%+5 digits 0.6° series
4Ω 0.4000Ω~3.9999Ω 3.0%+10 digits 1.7° series
0.4Ω 0.0000Ω~0.3999Ω 7%+20 digits ------ series
