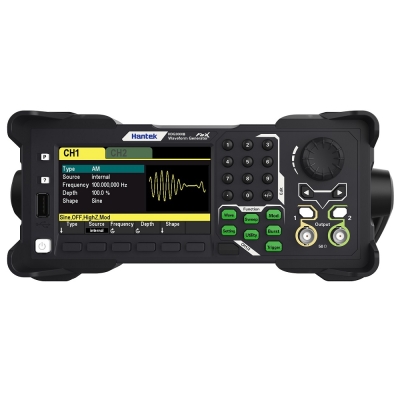

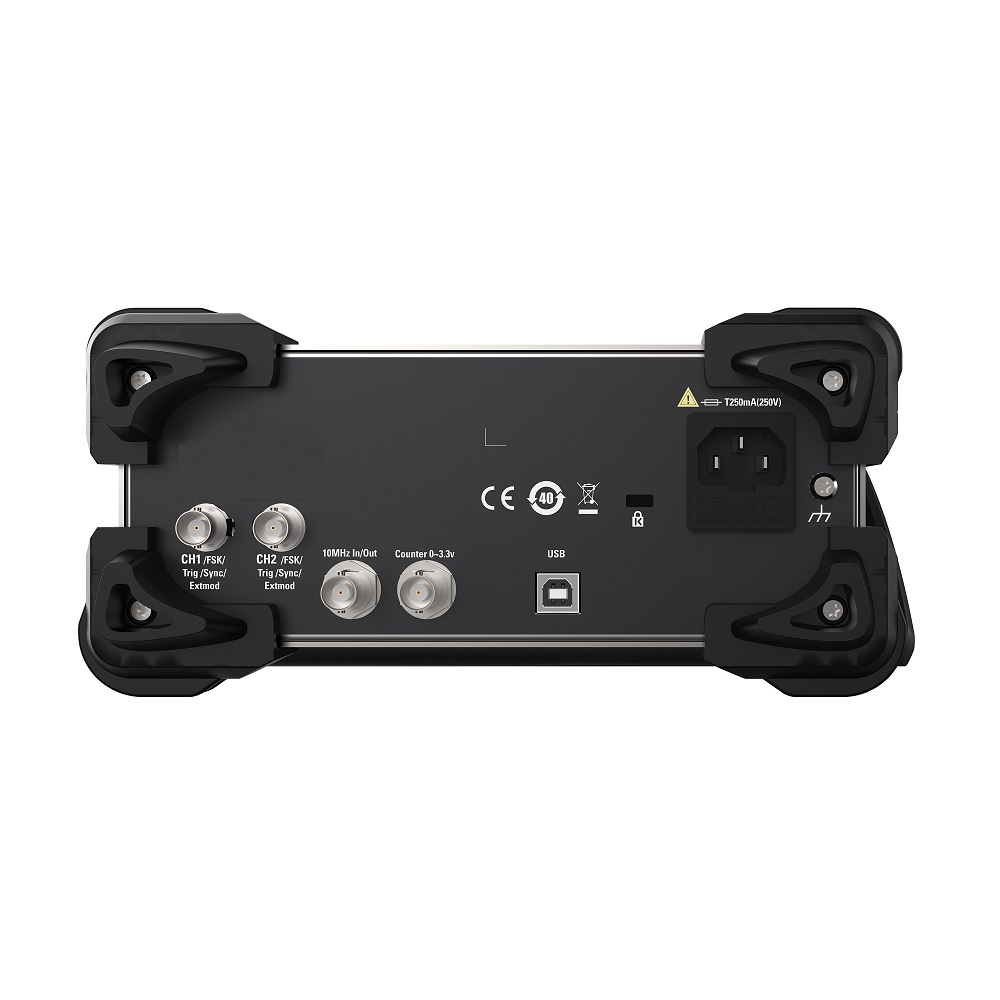

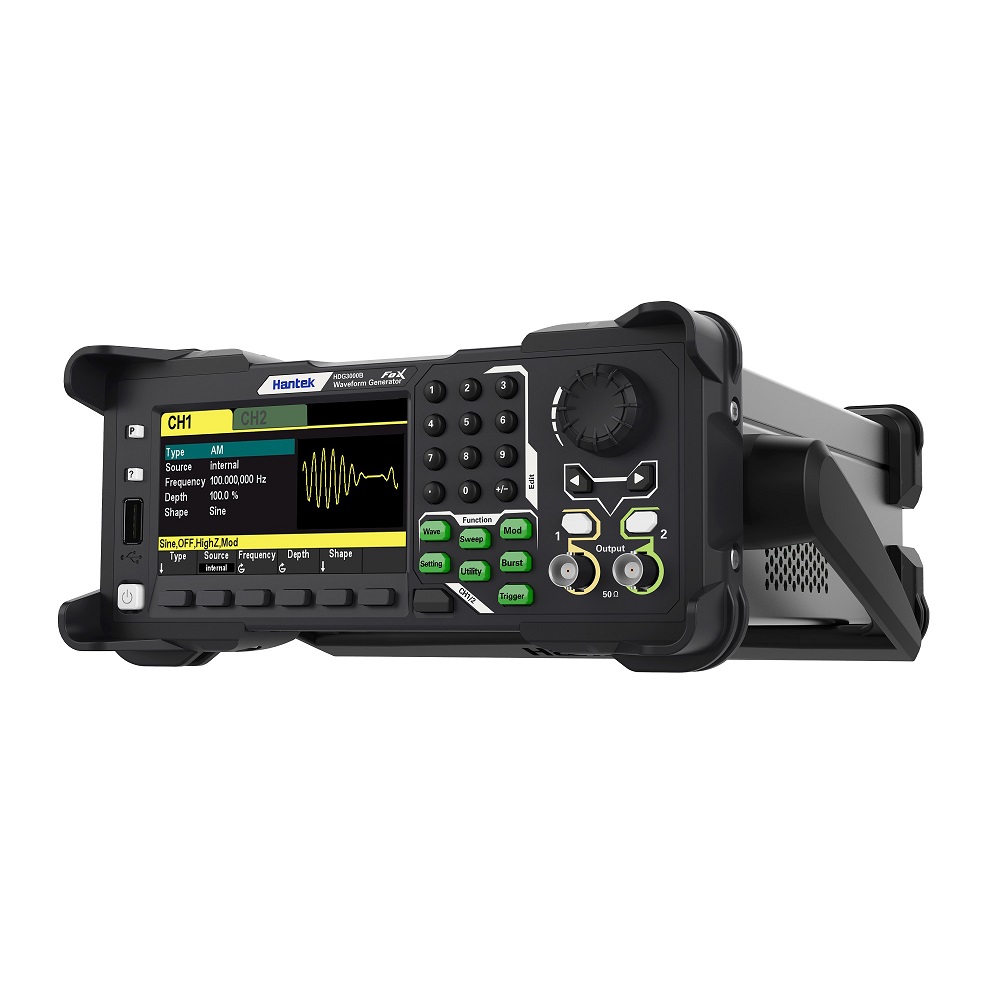

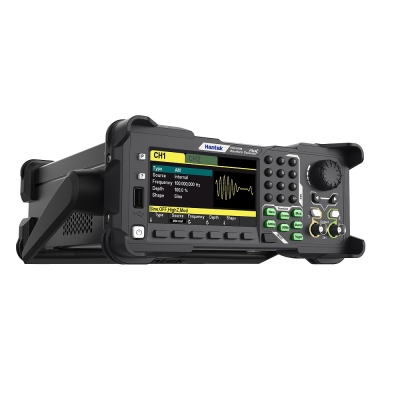

Hantek HDG3042B 40MHz 2 Kanal 250MSa/s Arbitrary Waveform Jeneratör

Model

HDG3102B

HDG3082B

HDG3062B

HDG3042B

HDG3022B

HDG3012B

Channel

2

Wavelength

2M

Frequency range

100MHz

80MHz

60MHz

40MHz

25MHz

15MHz

Sampling rate

250MSa/s

Voltage resolution

16Bits

Waveform

Standard waveform output

sine wave, square wave, triangular wave, pulse wave, noise, harmonics

Arbitrary waveform output

160 kinds of arbitrary waveforms, including exponential rise, exponential fall, ECG signal, Gauss, half vector, Lorentz, dual tone μlti-frequency, DC voltage, etc

Frequency property

Sine wave

1 μHz ~ 100 MHZ

1 μHz ~ 80 MHZ

1 μHz ~ 60 MHZ

1 μHz ~ 40 MHZ

1 μHz ~ 25 MHZ

1 μHz ~ 15 MHZ

Square wave

1 μHz ~ 15MHZ

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

Pulse wave

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

Triangle wave

1 μHz ~ 2 MHZ

1 μHz ~ 2 MHZ

1 μHz ~ 2 MHZ

1 μHz ~ 2 MHZ

1 μHz ~ 2 MHZ

1 μHz ~ 2 MHZ

Harmonic

1 μHz ~ 50 MHZ

1 μHz ~ 40 MHZ

1 μHz ~ 30 MHZ

1 μHz ~ 20 MHZ

1 μHz ~ 10 MHZ

1 μHz ~ 5 MHZ

Noise (3 db)

100 MHZ bandwidth

Arbitrary wave

1 μHz ~ 20 MHZ

1 μHz ~ 20 MHZ

1 μHz ~ 20 MHZ

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

1 μHz ~ 15 MHZ

Resolution

1μHz

Precision

±1ppm, 18~28℃

Square wave property

Rise/Fall time

Typical (1kHz, 1Vpp)

≥9ns

Overshoot

Typical (100kHz, 1Vpp)

≤5%

Duty cycle

0.001% ~ 99.999%;

The range varies with the frequency

Asymmetry

1% of the period plus 4ns

Triangular wave property

Linear

≤ 1% of peak output (typical, 1kHz, 1Vpp, symmetry 100%)

Symmetry

0% ~ 100%

Impulse wave property

Cycle

67ns~1Ms

67ns~1Ms

67ns~1Ms

67ns~1Ms

67ns~1Ms

67ns~1Ms

Pulse

≥16ns

≥16ns

≥16ns

≥16ns

≥16ns

≥16ns

Rise/Fall time

≥9ns (limited by current frequency setting and pulse width setting)

Overshoot

Typical (1kHz, 1Vpp)

≤5%

Arbitrary wave property

Wavelength

2M

Vertical resolution

16 Bits

Sampling rate

1μSa/s~62.5 MSa /s, 1μSa/s resolution

Time of rise/fall

Ns of 9 or higher

Overshoot

Typical (1Vpp)

≤5%

Harmonic property

Harmonic frequency

≤16

Harmonic type

Even harmonics, odd harmonics, all harmonics

Harmonic amplitude

All harmonic amplitude can be set.

Harmonic phase

All harmonic amplitude can be set.

Amplitude property (50Ω terminal)

Amplitude range

≤10MHz: 1mVpp ~ 10Vpp;

≤55MHz: 1mVpp ~ 5.5Vpp;

≤80MHz:1mVpp ~ 3.5Vpp;

≤100MHz:1mVpp ~ 2Vpp;

Precision

Typical (1kHz sine wave, 0V offset, > 10mVPP)

± 1% setting value ± 5mVpp

Amplitude flatness (relative to 1kHz sine wave, 1Vpp, 50Ω)

≤5MHz: ±0.1dB;

≤15MHz: ±0.2dB;

≤25MHz: ±0.3dB

≤40MHz: ±0.5dB

40MHz: ±1.0dB

Unit

Vpp, mVpp, Vrms, dBm(50Ω impedance)

Resolution

1mVpp

Offset property (50Ω terminal)

Scope

±5Vpkac+dc

Precision

±(1% of the setting value + 5mV + 1% of the amplitude)

Waveform output

Impedance

50 Ω

Modulation property

Modulation type

AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM

AM

Carrier

Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)

Modulation source

Internal, external and other channels

Modulation wave

Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg

Modulation frequency

2mHz~1MHz

Modulation depth

0% ~ 120%

DSB-AM

Carrier

Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)

Modulation source

Internal, external and other channels

Modulation wave

Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg

Modulation frequency
