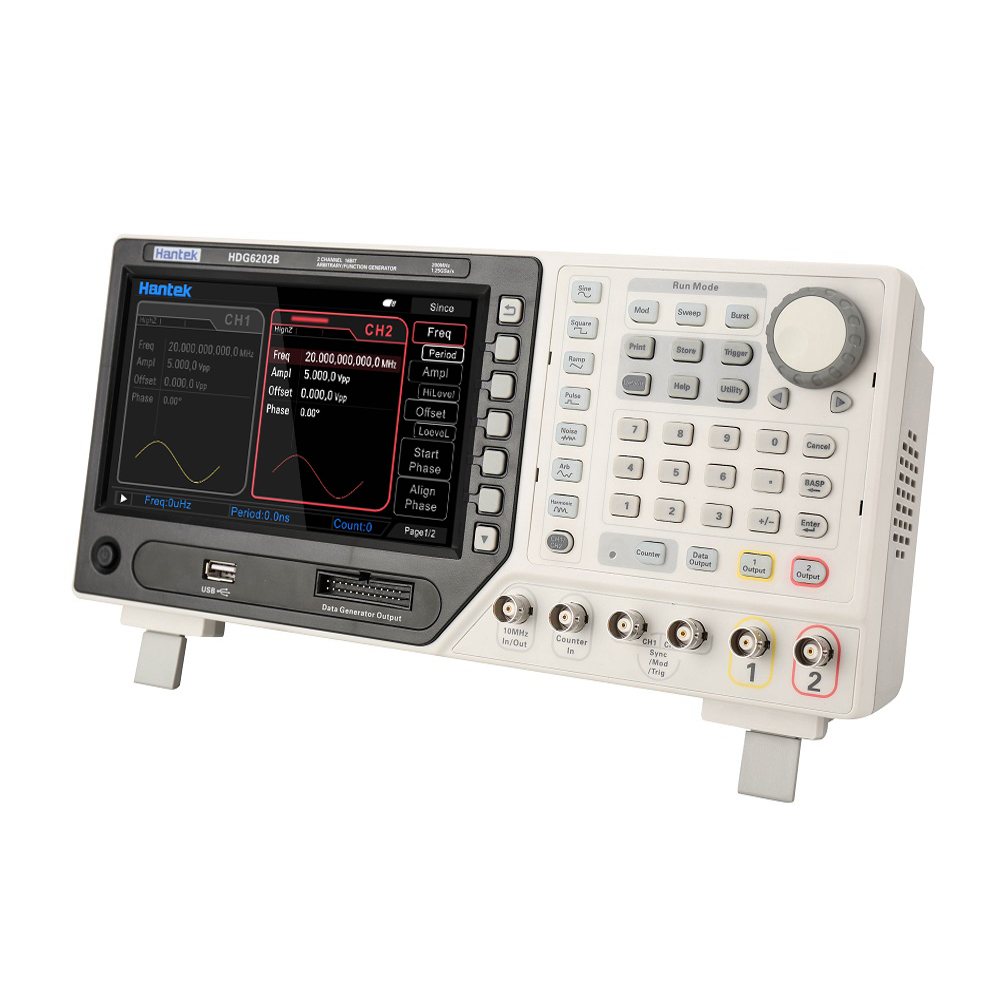

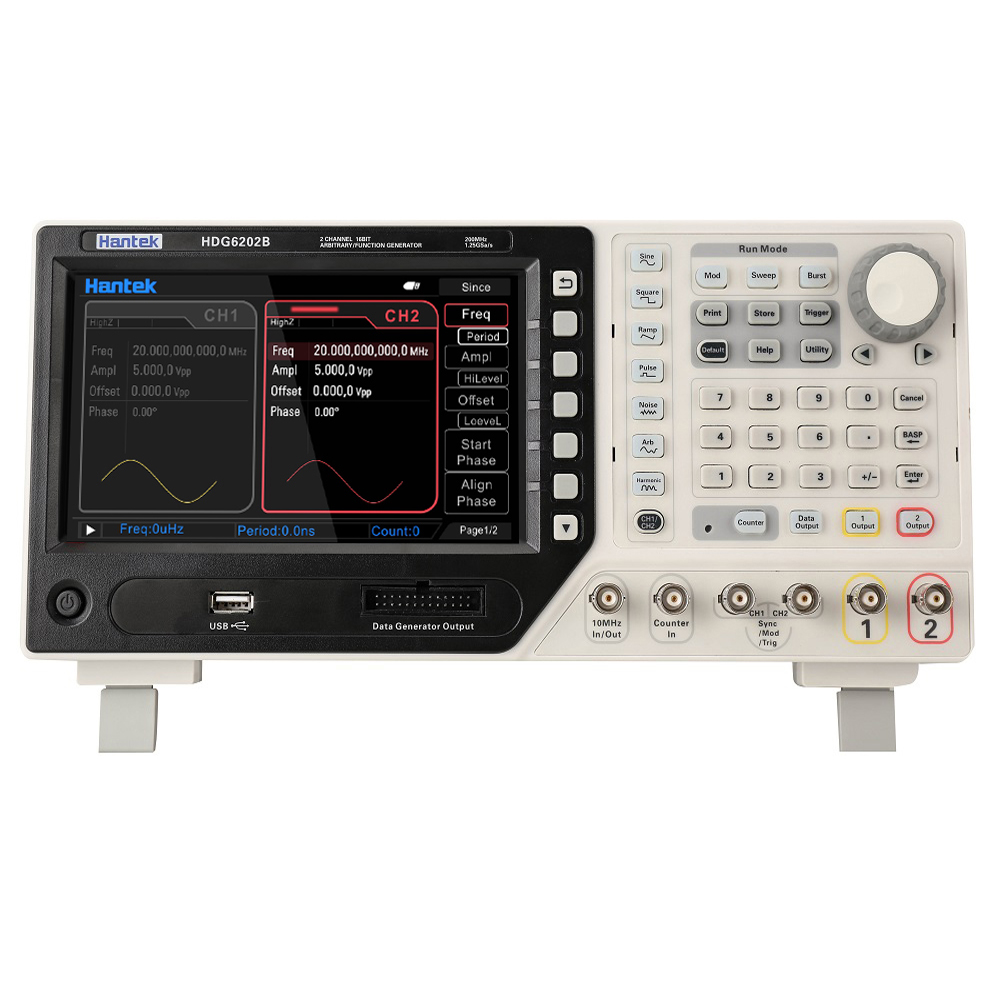

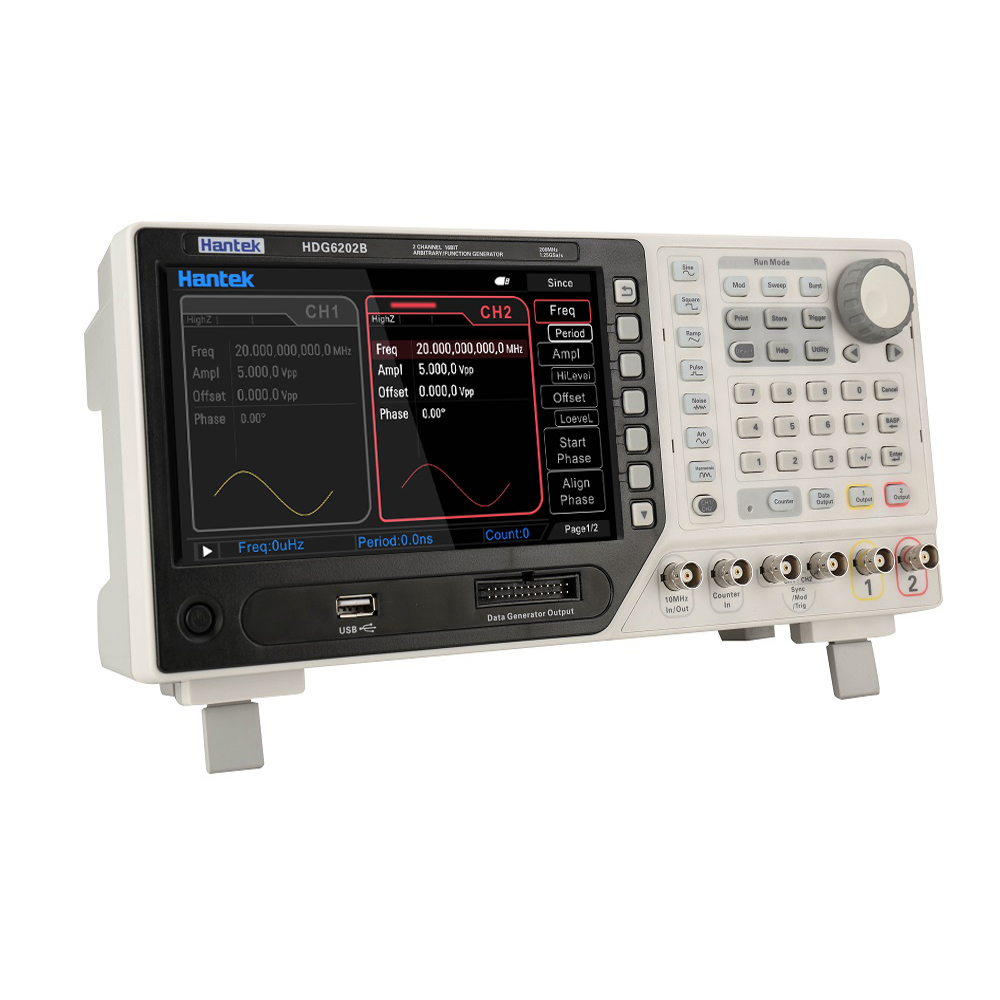

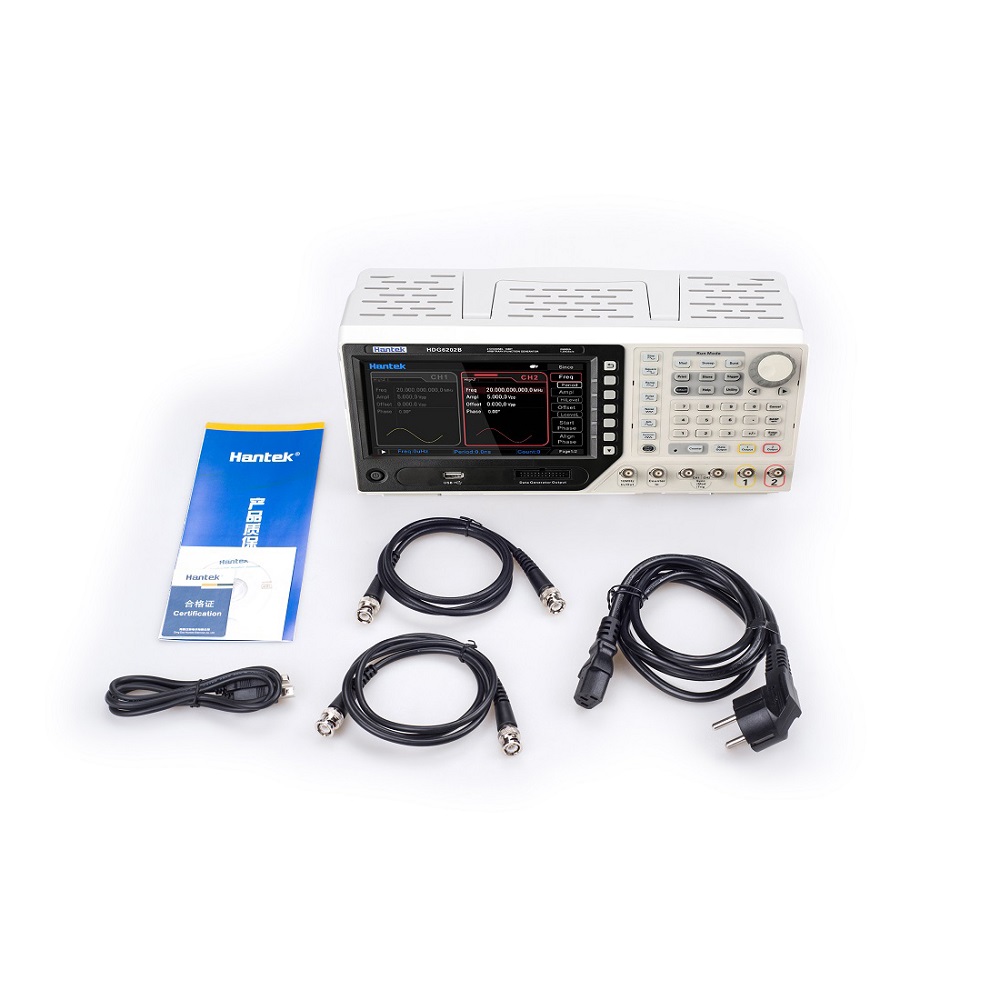

HDG6202B 200MHz 2 Kanal 64M Arbitrary Waveform Jeneratör
0,00 TL (KDV Dahil)
HDG6000B Genel Özellikler:
HDG6000B serisi, keyfi dalga formu üreteci, darbe üreteci, 16 bitlik kelime üreteci, 7 basamaklı simometre ve fonksiyon üreteci gibi çok işlevli bileşenleri bir araya getirir. Kararlı, doğru ve düşük bozulmalı sinyaller üretebilir ve çıktı verebilir. Çeşitli sinyalleri simüle etmeyi kolaylaştıran 150'den fazla tür keyfi dalga formu yerleşiktir. Geniş ekranı, kullanıcı dostu arayüz tasarımı ve klavye düzeni kullanımı kolaydır. Zengin standart yapılandırma arayüzleri, cihazın uzaktan kontrolünü kolayca sağlar.
HDG6202B Genel Özellikleri
Specification
| Model | HDG6202B | HDG6162B | HDG6112B | HDG6082B |
| Main Feature | ||||
| Channel | 2 | 2 | 2 | 2 |
| Waveform Length | 64M | |||
| Frequency Range | 200MHz | 160MHz | 110MHz | 80MHz |
| Sampling Rate | 1.25GSa/s | |||
| Voltage Resolution | 16 Bit | |||
| Digit Output Mode | 16 channels output | |||
| Waveform | ||||
| Standard Waveform | sine, square, triangle, pulse, noise, harmonic | |||
| Arb. Waveform | More than 150 kinds: index rise, exponential decline, ECG signal, Gaussian, semi-positive, Lorentz, dual-tone multi-frequency, DC voltage, etc. | |||
| Frequency Characteristics | ||||
| Sine | 1uHz~200MHz | 1uHz~160MHz | 1uHz~110MHz | 1uHz~80MHz |
| Square | 1uHz~60MHz | 1uHz~50MHz | 1uHz~40MHz | 1uHz~35MHz |
| Pulse | 1uHz~50MHz | 1uHz~40MHz | 1uHz~25MHz | 1uHz~20MHz |
| Triangle | 1uHz~5MHz | 1uHz~4MHz | 1uHz~3MHz | 1uHz~2MHz |
| White Noise | 120MHz | 120MHz | 110MHz | 80MHz |
| Harmonic | 1uHz~100MHz | 1uHz~80MHz | 1uHz~55MHz | 1uHz~40MHz |
| Arbitrary | 1uHz~50MHz | 1uHz~40MHz | 1uHz~25MHz | 1uHz~15MHz |
| Resolution | 1uHz | |||
| Accuracy | ±2ppm, 18~28℃ | |||
| Sine Spectrum Purity | ||||
| Harmonic Distortion | Typical (0dBm) | |||
| DC-1MHz: <-60dBc | ||||
| 1MHz-10MHz: <-55dBc | ||||
| 10MHz-100MHz: <-50dBc | ||||
| 100MHz-160MHz: <-40dBc | ||||
| THD (Total Harmonic Distortion) | <0.1% (10Hz-20kHz, 0dBm) | |||
| Spurious Signal (Non-harmonic) | Typical (0dBm) | |||
| ≤10MHz: <-65dBc | ||||
| >10MHz: <-65dBc+6dB/octave | ||||
| Phase Noise | Typical (0dBm,10KHz offset) | |||
| 0MHz: ≤-115dBc/Hz | ||||
| Square Characteristics | ||||
| Rising/Falling Time | Typical (1Vpp) | Typical (1Vpp) | Typical (1Vpp) | |
| <8ns | <10ns | <12ns | ||
| Overshoot | Typical (100KHz, 1Vpp) | |||
| <3% | ||||
| Duty Cycle | ≤10MHz: 20.0%~80.0% | |||
| 10MHz~40MHz: 40.0%~60.0% | ||||
| >40MHz: 50.0% (fixed) | ||||
| Asymmetry | 1% +5ns of Period | |||
| Jitter | Typical (1MHz,1Vpp, 50Ω) | |||
| ≤ 5MHz: 2ppm+500ps | ||||
| > 5MHz: 500ps | ||||
| Triangle Characteristics | ||||
| Linear | ≤1% (1KHz, 1Vpp) of Peak Output | |||
| Symmetry | 0%~100% | |||
| Pulse Characteristics | ||||
| Period | 25ns~1Ms | 25ns~1Ms | 40ns~1Ms | 50ns~1Ms |
| Pulse | ≥10ns | ≥10ns | ≥12ns | ≥15ns |
| Rising/Falling Time | ≥5ns | ≥6ns | ≥8ns | ≥10ns |
| Overshoot | <3% (1Vpp) | |||
| Jitter | Typical (1MHz, 1Vpp, 50Ω) | |||
| ≤ 5MHz 2ppm+500ps | ||||
| > 5MHz 500ps | ||||
| Arbitrary Characteristics | ||||
| Waveform Length | 64M | |||
| Vertical Resolution | 16 Bit | |||
| Sampling Rate | 1.25GSa/s | |||
| Rising/Falling Time | Typical (1Vpp): <6ns | |||
| Jitter | Typical (1MHz, 1Vpp, 50Ω) | |||
| ≤ 5MHz 2ppm+500ps | ||||
| > 5MHz 500ps | ||||
| Harmonic Output Characteristics | ||||
| Harmonic Times | ≤16 times | |||
| Harmonic Type | Even harmonics, odd harmonics, sequential harmonics | |||
| Harmonic Amplitude | Each harmonic amplitude can be set | |||
| Harmonic Phase | Each harmonic phase can be set | |||
| Amplitude Characteristics ( 50ΩTermination) | ||||
| Range | ≤20MHz: 1mVpp ~ 10Vpp | |||
| ≤80MHz: 1mVpp ~ 5Vpp | ||||
| ≤110MHz:1mVpp ~ 2.5Vpp | ||||
| ≤160MHz:1mVpp ~ 1Vpp | ||||
| ≤200MHz:1mVpp ~ 0.5Vpp | ||||
| Accuracy | 1KHz Sine, 0V offset (±|1%±2mVpp| of setting value) | |||
| Amplitude flatness (relative to 1 kHz sine wave, 500 mVpp, 50 Ω) | ≤1MHz: ±0.1dB | ≤1MHz: ±0.1dB | ≤1MHz: ±0.1dB | ≤1MHz: ±0.1dB |
| ≤60MHz: ±0.2dB | ≤60MHz: ±0.2dB | ≤60MHz: ±0.2dB | ≤60MHz: ±0.2dB | |
| ≤100MHz: ±0.4dB | ≤100MHz: ±0.4dB | ≤100MHz: ±0.4dB | ||
| ≤160MHz: ±0.8dB | ≤160MHz: ±0.8dB | |||
| ≤200MHz: ±1.2dB | ||||
| Unit | Vpp, mVpp, Vrms | |||
| Resolution | 1mV | |||
| Impedance | 50Ω | |||
| Offset Characteristics (50Ω termination) | ||||
| Range | |Voltset| < Vmax – Vpp/2 | |||
| Accuracy | ± (1% of setting + 5mV + 0.5% of amplitude) | |||
| ± ( |1% + 5mV| of setting value + 0.5% of amplitude) | ||||
| Modulation Characteristics | ||||
| Modulation Type | AM, FM, PM, 2ASK, 2FSK, 2PSK, BPSK, PWM | |||
| AM | ||||
| Carrier Wave | Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) | |||
| Modulation Source | Internal, external, other channels | |||
| Modulation Wave | Sine, Square, Triangle, White Noise, Arbitrary | |||
| Modulation Frequency | 2mHz~50KHz | |||
| Modulation Depth | 0%~120% | |||
| FM | ||||
| Carrier Wave | Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) | |||
| Modulation Source | Internal, external, other channels | |||
| Modulation Wave | Sine, Square, Triangle, White Noise, Arbitrary | |||
| Modulation Frequency | 2mHz~50KHz | |||
| PM | ||||
| Carrier Wave | Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) | |||
| Modulation Source | Internal, external, other channels | |||
| Modulation Wave | Sine, Square, Triangle, White Noise, Arbitrary | |||
| Modulation Frequency | 2mHz~50KHz | |||
| Phase Deviation | 0° to 360° | |||
| 2ASK | ||||
| Carrier Wave | Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) | |||
| Modulation Source | Internal, external | |||
| Modulation Wave | 50% duty cycle square wave | |||
| Modulation Frequency | 2mHz~1MHz | |||
| 2FSK | ||||
| Carrier Wave | Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) | |||
| Modulation Source | Internal, external | |||
| Modulation Wave | 50% duty cycle square wave | |||
| Modulation Frequency | 2mHz~1MHz | |||
| 2PSK | ||||
| Carrier Wave | Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) | |||
| Modulation Source | Internal, external | |||
| Modulation Wave | 50% duty cycle square wave | |||
| Modulation Frequency | 2mHz~1MHz | |||
| BPSK | ||||
| Carrier Wave | Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) | |||
| Modulation Source | Internal | |||
| Modulation Wave | 01 yard | |||
| Modulation Frequency | 2mHz~1MHz | |||
| PWM | ||||
| Carrier Wave | Square | |||
| Modulation Source | Internal, external, other channels | |||
| Modulation Wave | Sine, square, sawtooth, noise, arbitrary | |||
| Modulation Frequency | 2mHz~50KHz | |||
| Width Deviation | 0% to 100% of Pulse Width | |||
| 0% to 100% of the pulse width | ||||
| External Modulation Input | ||||
| Max. Input Range | 75mVRMS to ±2.5Vac+dc | |||
| Input Bandwidth | 10MHz | |||
| Input Impedance | 1KΩ | |||
| Sweep Characteristics | ||||
| Carrier Wave | Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) | |||
| Type | Linear | |||
| Direction | Top | |||
| Sweep | 1ms to 50Ks | |||
| Hold/return Time | 1ms to 50Ks | |||
| Trigger Source | Internal, external, manual | |||
| Mark | Falling edge of the sync signal (programmable) | |||
| Burst Characteristics | ||||
| Carrier Wave | Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC) | |||
| Carrier Frequency | 2mHz to 100MHz | 2mHz to 100MHz | 2mHz to 80MHz | |
| Pulse Count | 1 to 2000 000 000 | |||
| Start/Stop Phase | 0° to 360° | |||
| Internal Cycle | 2μs to 500s | |||
| Gating Source | External Trigger | |||
| Trigger Source | Internal, external, manual | |||
| Cymometer | ||||
| Measurement Function | Frequency, period, positive/negative pulse width, duty cycle | |||
| Frequency Resolution | 7 bits/s | |||
| Frequency Range | 1uHz~200MHz | |||
| Input Level | TTL level | |||
| Gate Time | 10ms~16s | |||
| Voltage Range and Sensitivity (Non-modulated Signal) | ||||
| DC Coupling | DC Offset Range | ±1.5VDC | ||
| 1μHz to 100MHz | 50mVRMS to ±2.5Vac+dc | |||
| 100MHz to 200MHz | 100mVRMS to ±2.5Vac+dc | |||
| Pulse Width and Duty Cycle Measurement | ||||
| Frequency and Amplitude Range | 1μHz to 25MHz | 50mVRMS to ±2.5Vac+dc | ||
| Pulse Width | Min. Pulse Width | ≥100ns | ||
| Pulse Width Resolution | 8ns | |||
| Duty Cycle | Measuring range (display) | 0% to 100% | ||
| Input Characteristic | ||||
| Input Signal Range | Destruction Voltage | ±5Vac+dc | Input Impedance =500Ω | |
| Input Trigger | Trigger Level Range | -2.5V to +2.5V | ||
| Trigger Sensitivity Range | 0% (140mV hysteresis voltage) to 100% (2mV hysteresis voltage) | |||
| Trigger characteristics | ||||
| Trigger Input | ||||
| Level | TTL-compatible | |||
| Slope | Rise or fall (optional) | |||
| Pulse Width | >50ns | |||
| Reference Clock | ||||
| External Reference Input | ||||
| Lock Range | 10MHz±50Hz | |||
| Level | 2.5Vpp to 5Vpp | |||
| Lock Time | <2s | |||
| Input Impedance | 5kΩ, AC Coupling | |||
| Internal Reference Input | ||||
| Frequency | 10MHz ± 50Hz | |||
| Level | 3.3Vpp | |||
| Output Impedance | 5kΩ, AC Coupling | |||
| Synchronous Output | ||||
| Level | TTL-compatible | |||
| Impedance | 50Ω, nominal value | |||
| General Characteristics | ||||
| Interface | HDG6000B: USB Host, USB Device, Optional RS232 port | |||
| HDG6000C: USB Host, USB Device, LAN port, Wi-Fi, Touch Screen, Optional RS232 port | ||||
| Display | 7 inch, 64K color, TFT LCD Screen, 800*640 | |||
| Voltage | 100-240V, 45Hz - 440Hz | |||
| Power | <50W | |||
| Environment | ||||
| Temperature Range | Operation: 10 ° C to 40 ° C Non-operation: -20 ° C to 60 ° C | |||
| Cooling Method | Fan forced cooling | |||
| Humidity Range | Less than 35 ° C: ≤ 90% relative humidity 35 ° C to 40 ° C: ≤ 60% relative humidity | |||
| Altitude | Operation: 3000 meters or less; Non-operation: 15000 meters or less | |||
| Mechanical Specifications | ||||
| Dimension | 318 x 110 x 150mm (L x W x H) | |||
| Weight | 3KG | |||
