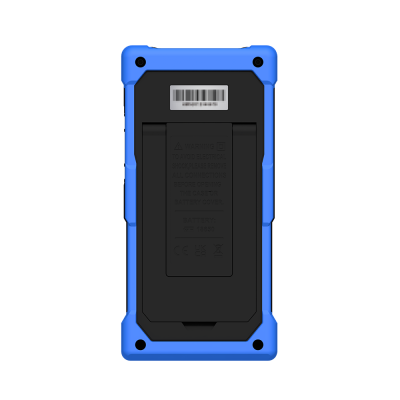

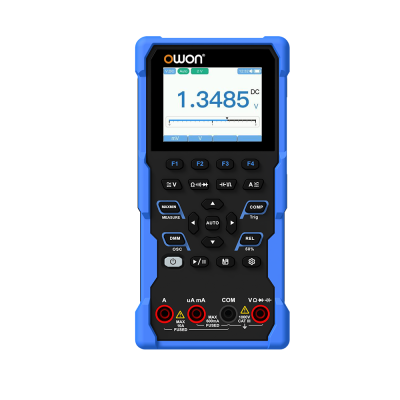

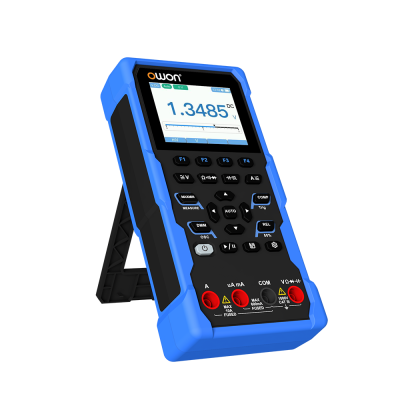

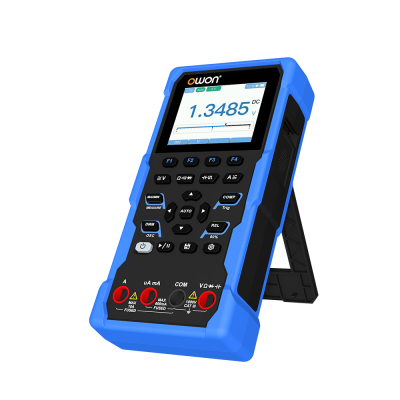

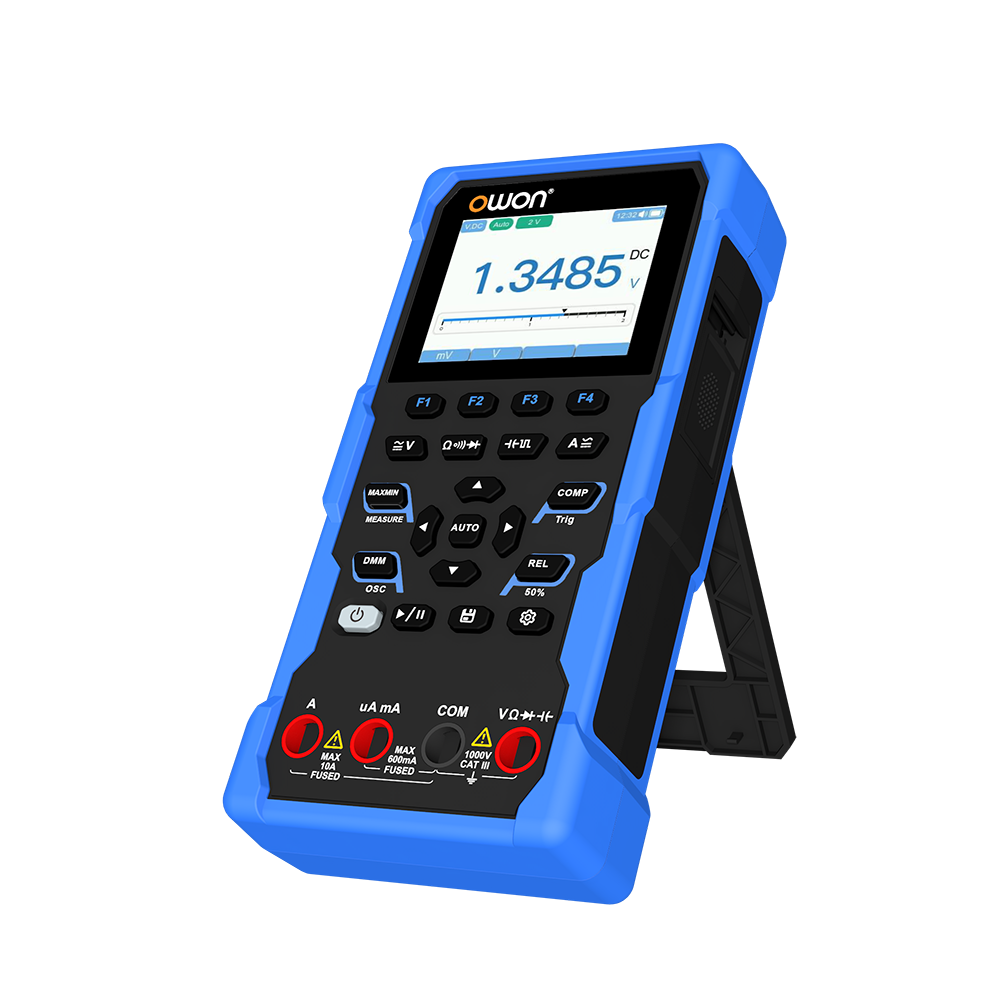

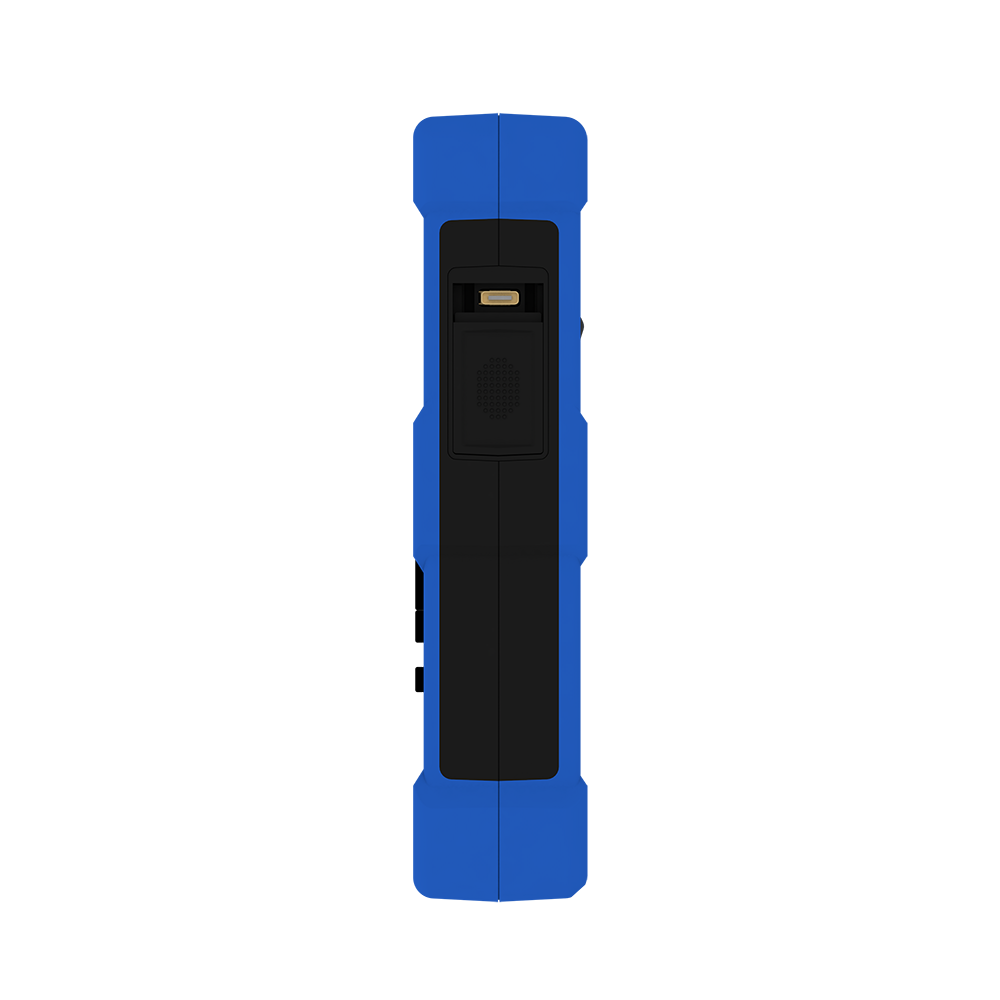

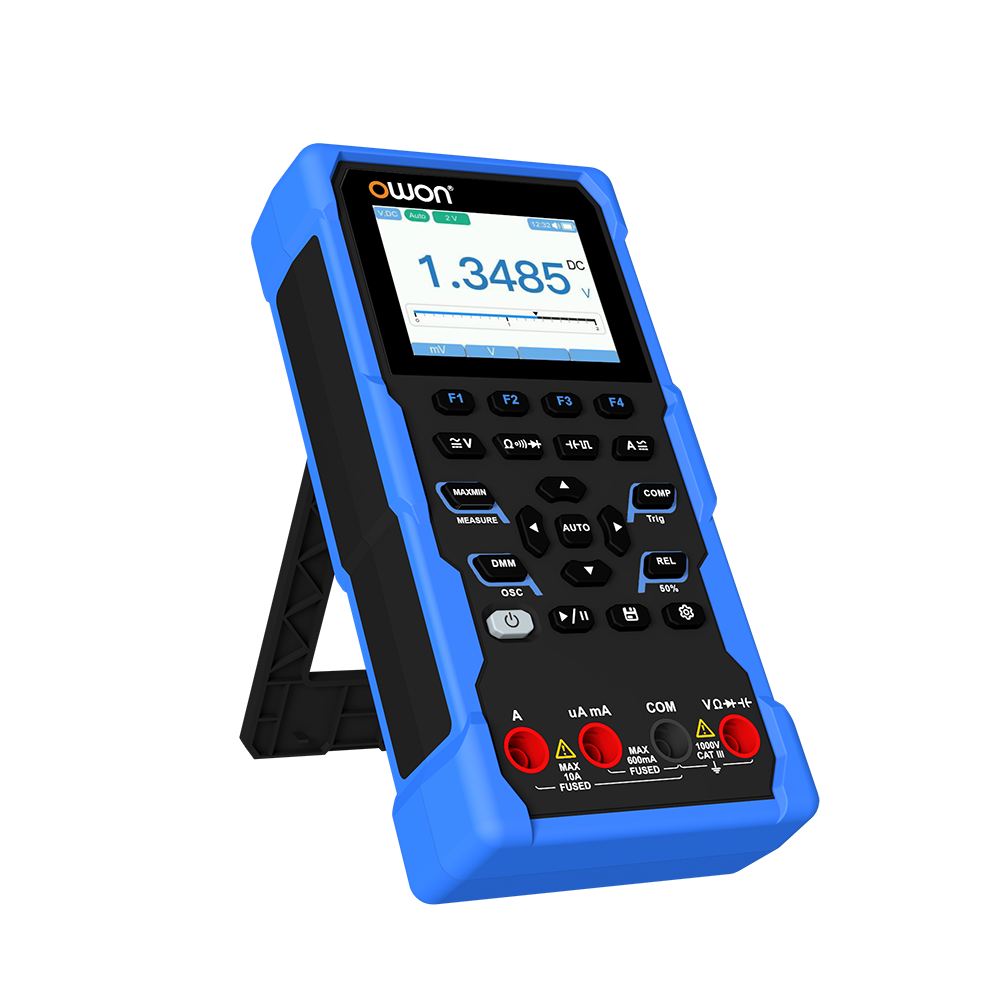

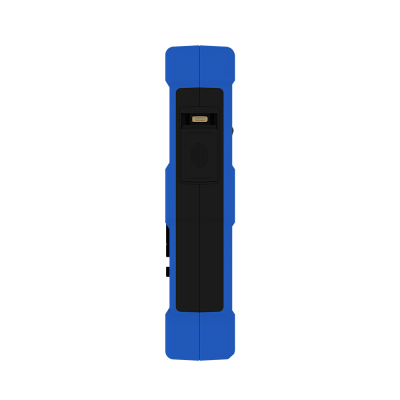

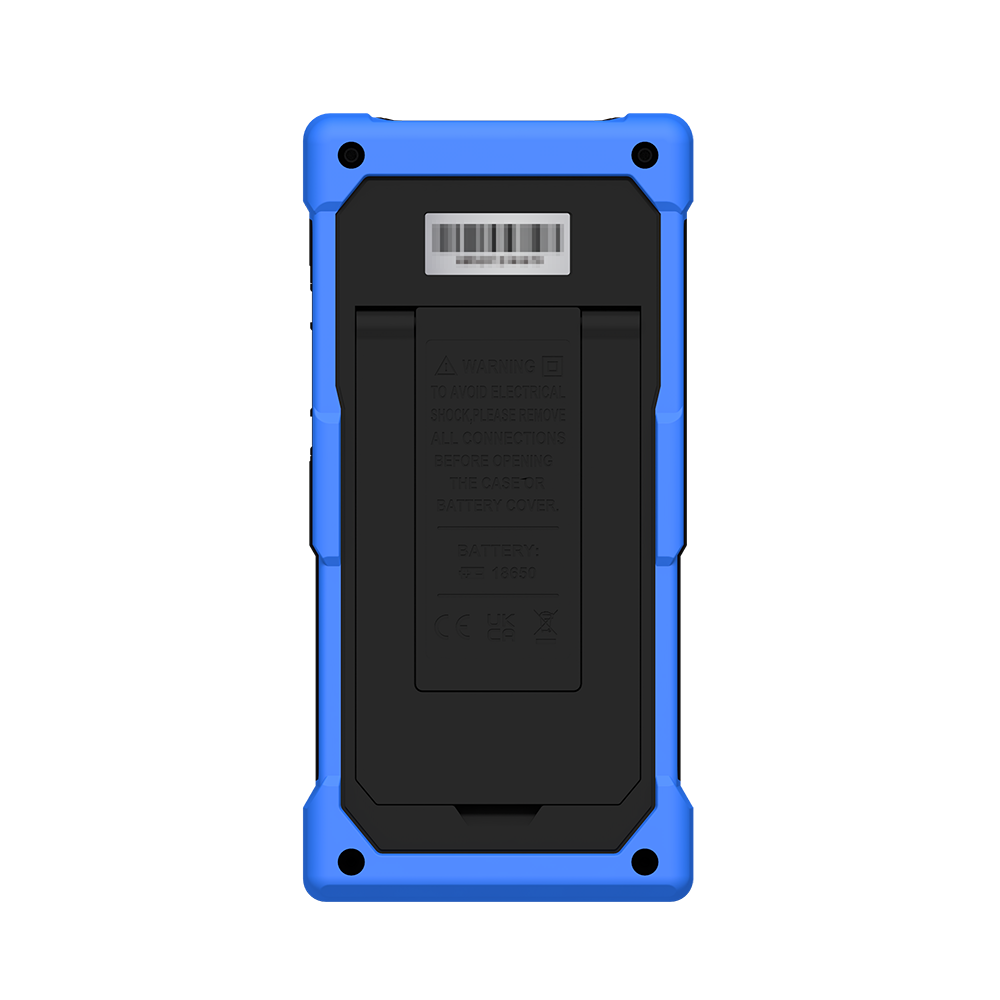

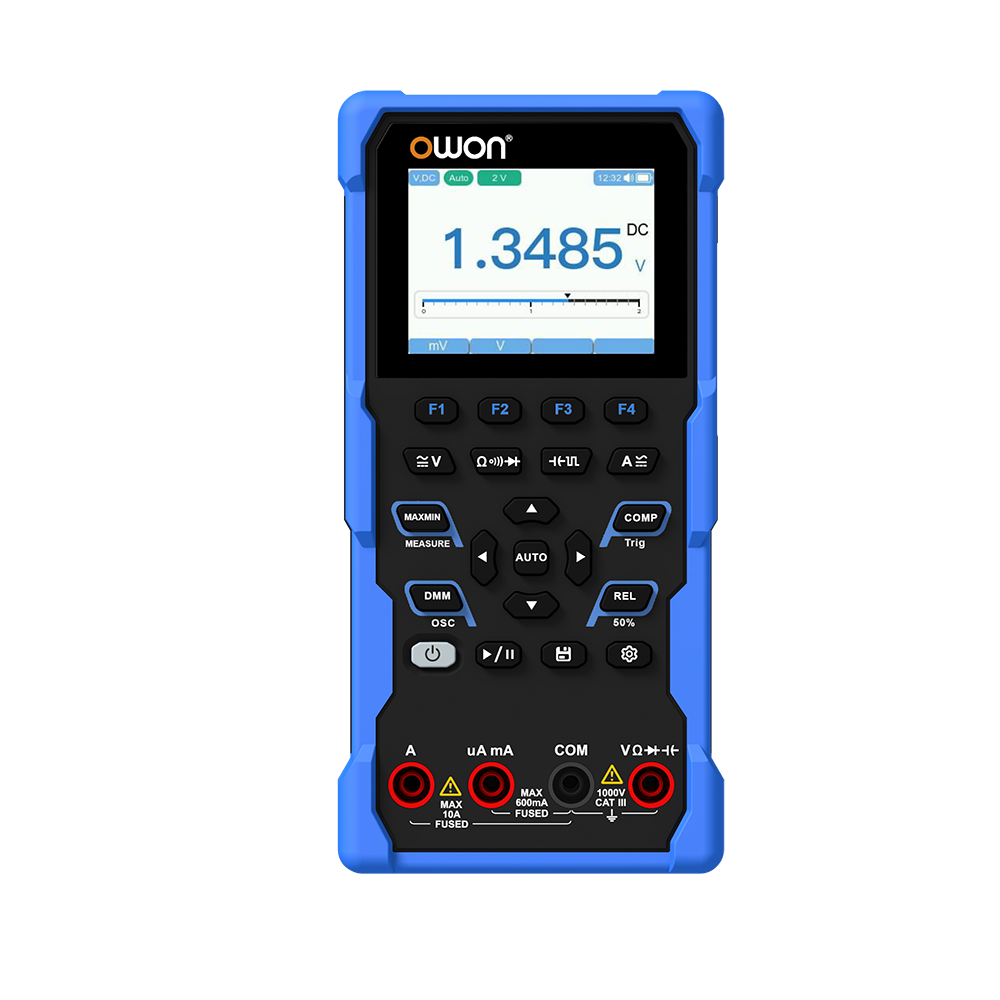

HDS120 1 MHz El Tipi Osiloskop Multimetre
0,00 TL (KDV Dahil)
OWON HDS100 Serisi Osiloskop Multimetre Genel Özellikleri:
|
|
Measurement Range |
Optimal Accuracy |
|
DC Voltage(V) |
20.000mV / 200.00mV / 2.0000V / 20.000V 200.00V / 1000.0V |
± (0.1%+5dig） |
|
AC Voltage (V) |
20.000mV / 200.00mV / 6.0000V / 60.000V / 600.00V / 750.00V |
± (0.6%+10dig) |
|
DC Current (A) |
200.00uA / 2000.0uA / 20.000mA / 200.00mA 2.0000A / 10.000A |
± (0.5%+10dig) |
|
AC Current (A |
200.00uA / 2000.0uA / 20.000mA / 200.00mA 2.0000A / 10.000A |
± (0.8%+10dig) |
|
Resistance(Ω) |
200.00Ω / 2.0000kΩ / 20.000kΩ / 200.00KΩ 2.0000MΩ / 20.000MΩ / 100.00MΩ |
± (0.3%+5dig) |
|
Capacitance(F) |
2.000nF / 20.00nF / 200.0nF / 2.000μF / 20.00μF 200.0μF / 2.000mF / 20.00mF |
± (3.0%+10dig) |
|
Frequency (Hz) |
200.00Hz / 2.0000kHz / 20.000kHz 200.00kHz / 2.0000MHz / 20.000MHz |
± (0.1%+5dig) |
|
Duty Cycle |
0.1%~99.9%(typical value：Vrms=1V,f=100Hz) |
± (1.2%+3dig) |
|
0.1%~99.9%(≥1kHz) |
± (2.5%+10dig) |
|
|
Diode |
3.0000V |
± (1.0%+10dig) |
|
On-Off |
1000.0Ω |
|
|
Display |
20000 |
|
Oscilloscope Specification
|
Analog bandwidth |
1MHz (only ACV scale) |
Maximum sample |
5.0MSa/s |
|
Channel |
1 |
Input impedance |
≈10MΩ |
|
Time base range |
2.5us~10s/grid |
Time base accuracy |
±（0.01% + 0.1div） |
|
Voltage vertical sensitivity range |
30mV~500V/grid |
Current vertical sensitivity range |
100μA~5A/grid |
|
Vertical amplitude accuracy |
±（5% + 0.2div） |
Measurement function |
Vmax, Vmin, Vp-p, Vavg Vrms, Hz |
|
Maximum voltage limit |
1000V DC+AC Peak value |
Maximum current limit |
15A DC+AC Peak value |
|
Trigger mode |
Auto/Normal/Single |
Trigger edge |
Rise edge/Fall edge |
|
Auto set |
Time base/Vertical amplitude/Trigger value |
||
Other Specification
|
Low battery indication |
√ |
Sleep Mode |
√ |
Relative Measurement |
√ |
|
Backlight |
√ |
Input Protection |
√ |
Input Impedance |
≥10MΩ |
|
Safety Compliance |
CATⅢ1000V |
LCD Size |
2.8” LCD |
Weight (without package) |
0.35kg |
|
Battery |
18650 |
Dimension（L*W*H） |
93mm x 41.5mm x 188mm |
||
