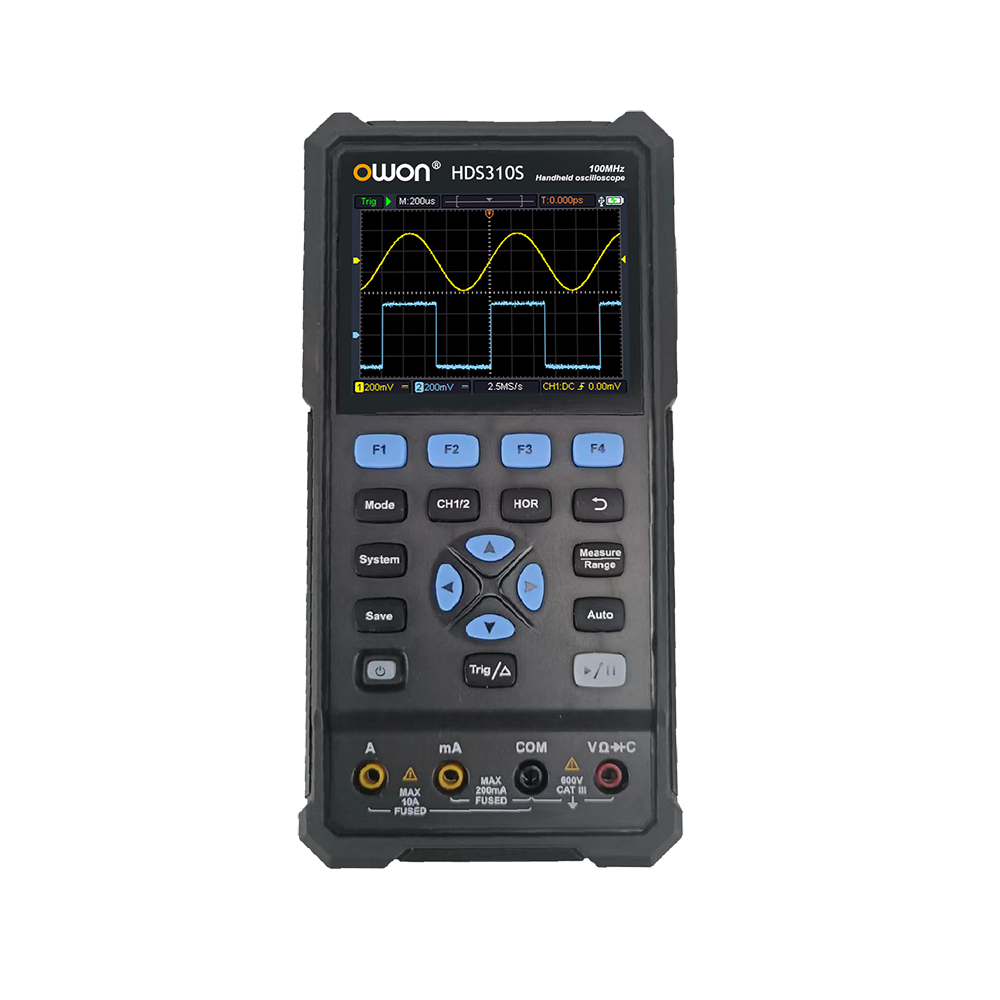

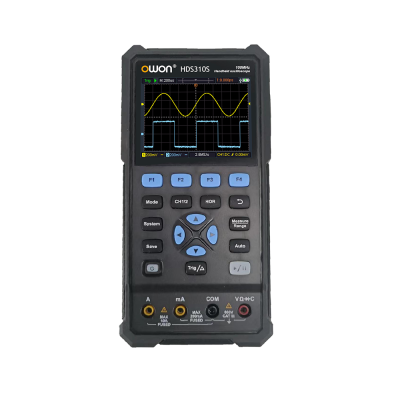

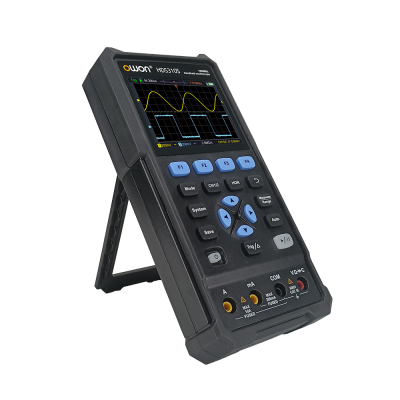

HDS310S 100 MHz 2+1 Kanal 500MSa/s Dijital Osiloskop
0,00 TL (KDV Dahil)
OWON HDS300 Serisi Dijital Osiloskop Genel Özellikleri:
HDS307S Genel Özellikleri:
「Oscilloscope」Specifications
|
Model |
HDS307S |
HDS310S |
HDS320S |
|
|
Bandwidth |
70MHz |
100MHz |
200MHz |
|
|
Channel |
2+1(signal generator) |
|||
|
Sample rate |
250MSa/s |
500MSa/s |
1GS/s |
|
|
Acquisition model |
Sample, Peak detect |
|
|
|
|
Sample, Peak detect |
||||
|
Record length |
8K |
|||
|
Display |
3.5 inch LCD |
|||
|
Waveform refresh rate |
10000 wfrms/s |
|||
|
Input coupling |
DC, AC ,Ground |
|||
|
Input impedance |
1 MΩ±2%, in parallel with 16 pF±10 pF |
|||
|
Probe attenuation |
1X,10X,100X,1000X,10000X |
|||
|
Max. input voltage |
400V (DC+AC, PK - PK) |
|||
|
Bandwidth limit(typical) |
20MHz / Full bandwidth |
|||
|
Sampling rate range |
5ns/div ~ 1000s/div,step by 1 – 2 - 5 |
2ns/div ~ 1000s/div,step by 1 – 2 - 5 |
||
|
Sensitivity Resolution |
10mV/div~10V/div |
|||
|
Low Frequency（-3db） |
≥10 Hz (at input, AC coupling) |
|||
|
Rise time (at input, Typical) |
≤5ns |
≤3.5ns |
≤1.75ns |
|
|
Trigger type |
Edge |
|||
|
Trigger model |
Auto, Normal, single |
|||
|
Trigger level range |
±4 div from the screen center |
|||
|
Automatic measurement |
Period, Frequency, Mean, PK-PK, Max, Min，RMS、Rise Time、Fall Time、+Width、-Width |
|||
|
Cursor measurement |
ΔV, ΔT, |
|||
|
Communication interface |
USB Type-C |
|||
「Multimeter」Specifications
|
Full scale reading |
4 1/2 digitals（max 20000 count） |
|
Testing Modes |
Voltage, Current, Resistance, Capacitance, Diode ,Continuity |
|
Maximum Input Voltage |
AC 750V， DC 1000V |
|
Maximum Input Current |
DC : 10A AC : 10A |
|
Diodes Test |
0-2V |
「Waveform Generator」Specifications
|
Frequency Output |
Sine |
0.1Hz~30MHz |
|
Square |
0.1Hz~6MHz |
|
|
Ramp |
0.1Hz~1MHz |
|
|
Pulse |
0.1Hz~5MHz |
|
|
Arbitrary Waveform |
0.1Hz~5MHz |
|
|
Sample Rate |
125MSa/s |
|
|
Channel |
1 |
|
|
Amplitude |
20mVpp-5Vpp（high impedance），10mVpp-2.5Vpp (50Ω) |
|
|
Waveform length |
8K |
|
|
Vertical resolution |
14bits |
|
|
Load impedance |
1MΩ/50Ω |
|
