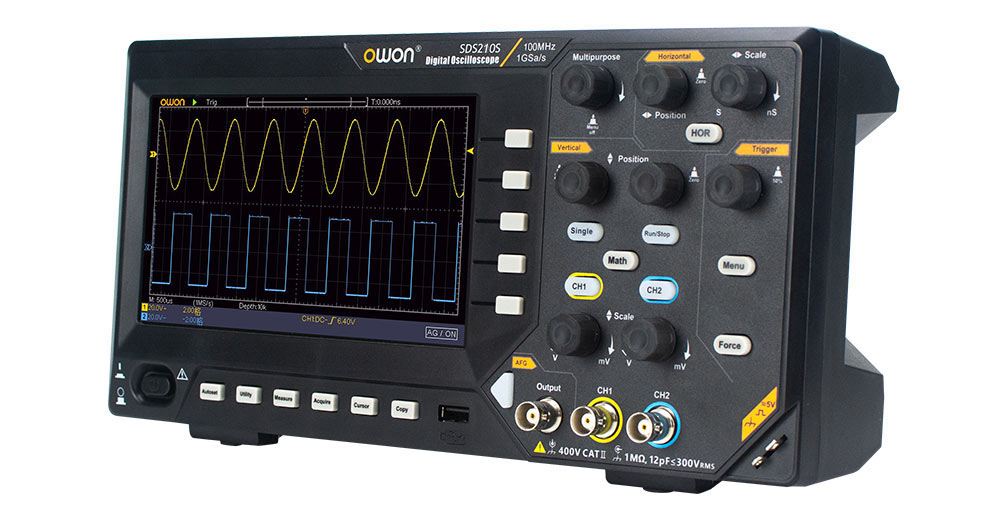

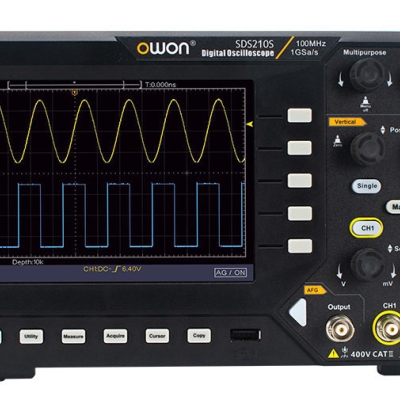

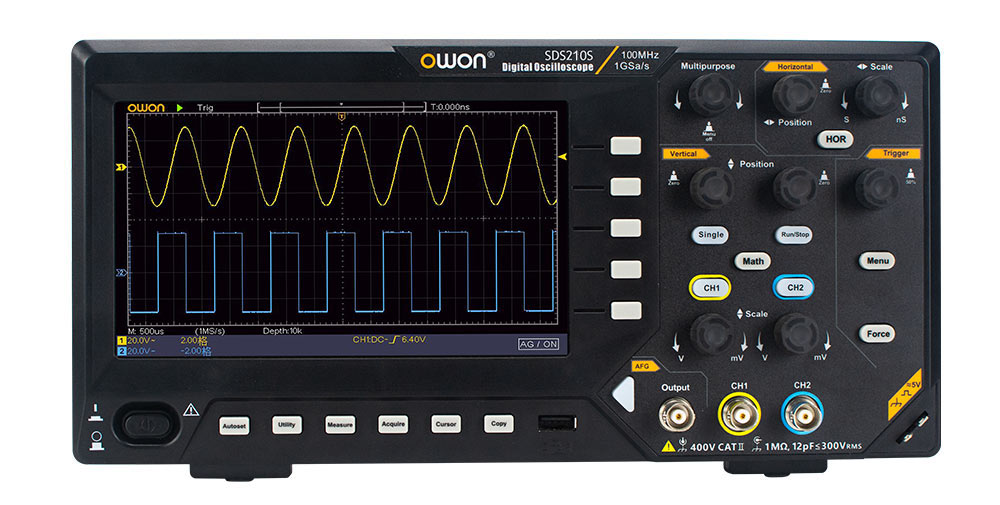

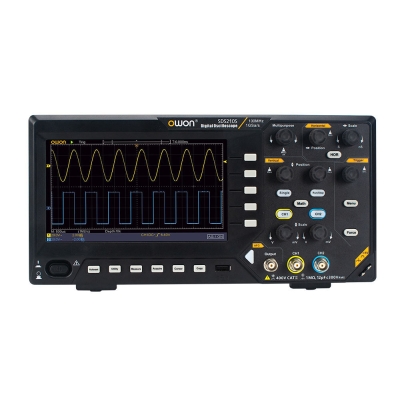

SDS210S 100 MHz 2 Kanal 1GS/s Dijital Osiloskop
0,00 TL (KDV Dahil)
SDS200 Serisi Dijital Osiloskop Genel Özellikleri:
SDS210S Özellikleri:
Waveform Generator Özellikleri
Standart Waveforms: Sine wave, square wave, ramp wave, pulse wave, arbitrary wave
Arbitrary Waveform: Sinc, exponential rise, exponential decline, Gaussian more than 160 kinds
Max Frekans Çıkışı: 25MHz
Arbitrary Waveform: 0.1Hz～5MHz
Örnekleme Oranı: 125MSa/s
|
Model |
SDS210(S) |
SDS215(S) |
SDS220(S) |
|
|
Bandwidth |
100MHz |
150MHz |
200MHz |
|
|
Channels |
Dual |
|||
|
Sample Rate |
Max 1GS/s |
|||
|
Acquisition Mode |
Normal, Peak detect, Averaging |
|||
|
Input Coupling |
DC, AC , Ground |
|||
|
Input Impedance |
1MΩ±2%，in parallel with 20 pF±5 pF |
|||
|
Probe Attenuation Factor |
1X，10X，100X，1000X |
|||
|
Record length |
20M |
|||
|
Horizontal Scale (s/div) |
2 ns/div – 1000 s/div, step by 1 – 2 - 5 |
|||
|
Vertical Sensitivity |
2 mV/div～10 V/div |
|||
|
Automatic Measurement |
Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle, Delay A→B, Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, Phase, +PulseCount, -PulseCount, RiseEdgeCnt, FallEdgeCnt, Area, and Cycle Area. |
|||
|
Waveform Math |
＋, －, ×, ÷, FFT |
|||
|
Waveform Storage |
16 waveforms |
|||
|
Trigger Type |
Edge, Video |
|||
|
Communication Interface |
USB Host and Device |
|||
|
Frequency Counter |
available |
|||
|
Waveform Generator Specifications （only for SDS210S,215S,220S） |
|
|
Standard Waveforms |
Sine wave, square wave, ramp wave, pulse wave, arbitrary wave |
|
Arbitrary Waveforms |
Sinc, exponential rise, exponential decline, Gaussian more than 160 kinds |
|
Max Frequency Output |
25MHz |
|
Arbitrary Waveform |
0.1Hz～5MHz |
|
Sample rate |
125MSa/s |
|
Amplitude (50Ω) |
0.005Vpp ～ 3Vpp |
|
DC Offset Range |
±(3V) (high resistance) |
|
Channel |
1 |
|
Waveform Length |
8k |
|
Vertical Resolution |
14 bit |
|
Load Impedance |
50 Ω |
|
Others |
|
|
Display |
7 inch（800*480）LCD |
|
Dimension (L x H x D) |
301mm × 152mm × 70 mm |
|
Weight |
≈ 1.1kg |
